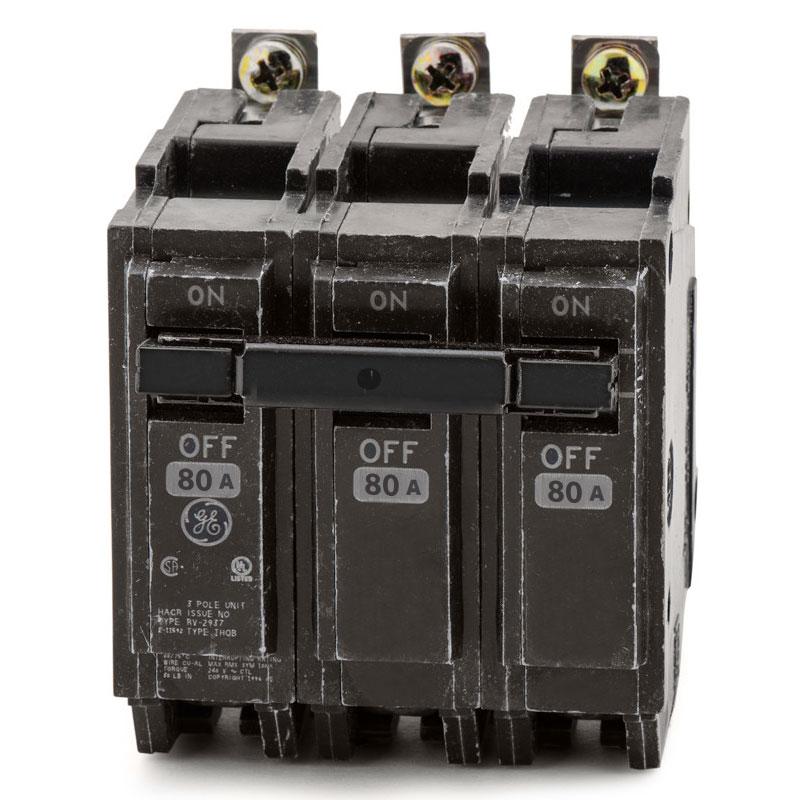

THQB32080 - General Electric Bolt-On 240V 80A 3 pole circuit breaker 10kA@208V
Couldn't load pickup availability
Ask an expert
Description
THQB32080
The General Electric THQB32080 is a Molded Case Circuit Breaker. This type THQB circuit breaker is a member of The Q-Line family. The THQB32080 is a 3 pole, 240 Volt, 80 amp rated circuit breaker, with an AIC rating of 10kA@208V. The THQB32080 is manufactured by General Electric. The THQB32080 uses a Bolt-On connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: THQB32080
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THQB
- Voltage : 240
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 10kA@208V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164059946
- GTIN : 00783164059946
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 3.000 in
- Weight : 1
- Certification : Ul Listed
