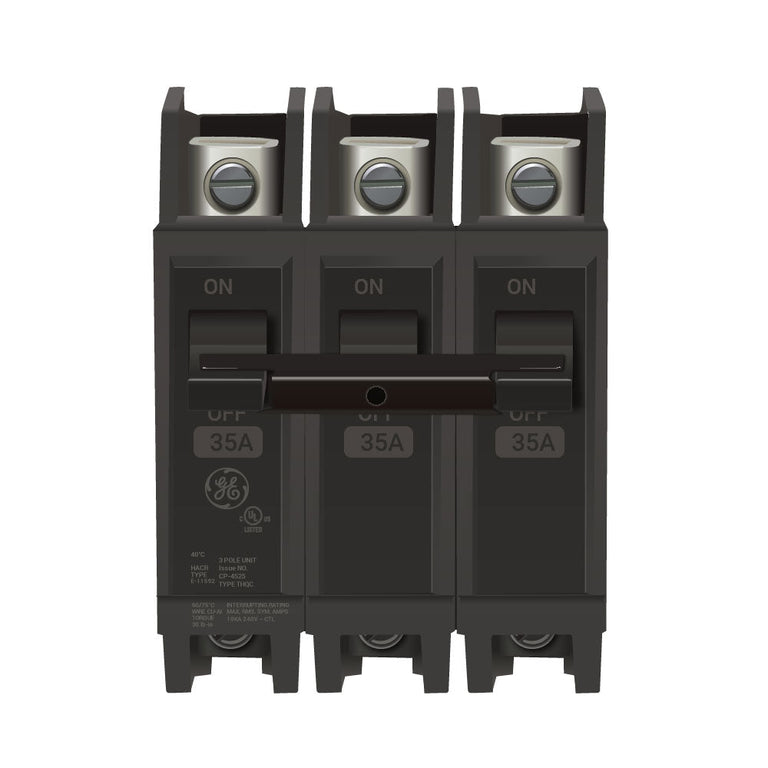

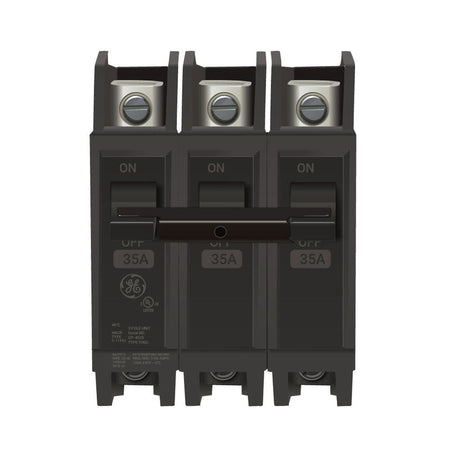

GE THQC32035WL 35 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 10 kA@240 V – Feed-Thru – THQC Series

The GE THQC32035WL is a 35 Amp, 3-pole molded case circuit breaker from General Electric, Type THQC. It is rated for 240 V with a 10 kA interrupting rating at 240 V and features thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions. The breaker is designed for feed-thru mounting and includes line & load-side lug terminals.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: THQC
• Type: THQC
• Catalog Number / MPN: THQC32035WL
• Primary Rating: 35 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 10 kA @ 240 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: THQC32035WL
• Series: THQC
• Type: THQC
• Current Rating: 35 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:783164060188

Compatibility

The GE THQC32035WL is designed for compatible GE Type THQC electrical distribution applications.

Certifications

• UL Listed
