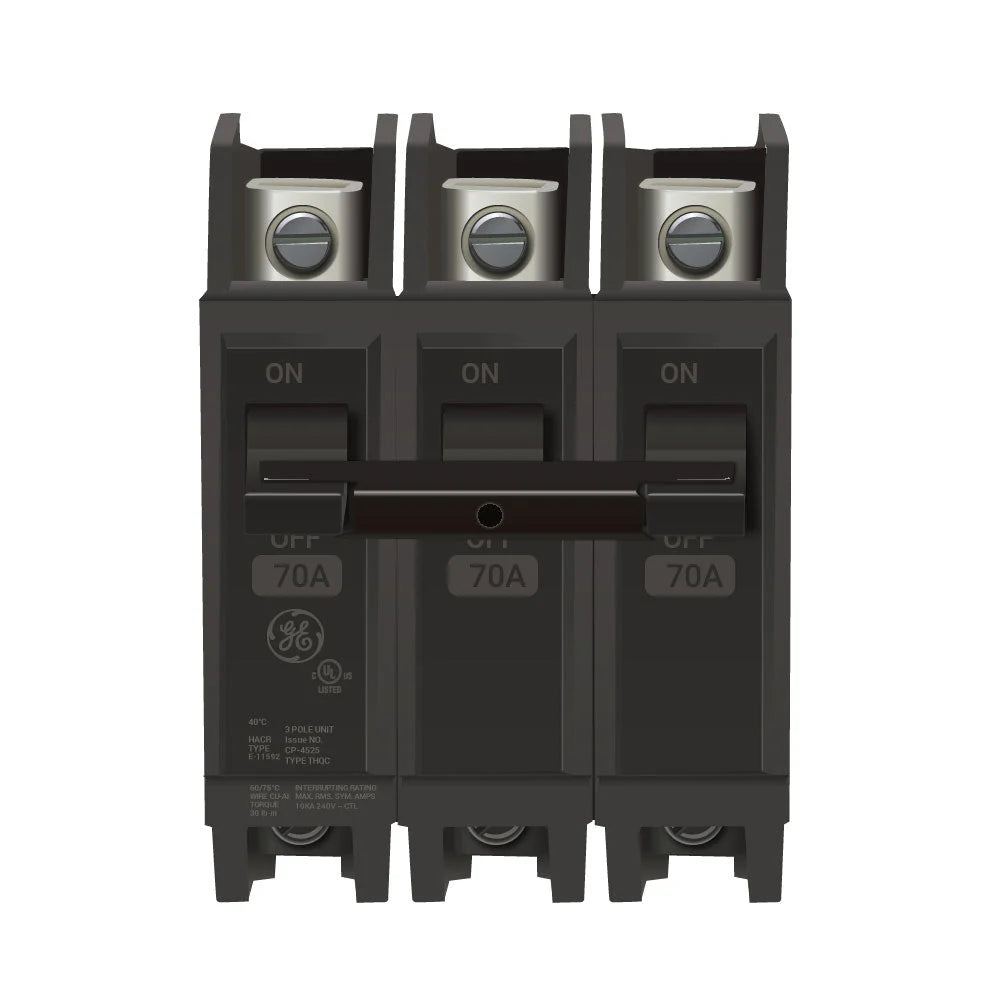

GE THQC32070WL Molded Case Circuit Breaker – 70A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Feed-Thru – THQC Series

The GE THQC32070WL is a 70A, 3-pole, 3-phase molded case circuit breaker from the GE Type THQC Series. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 240V and provides a 10kA interrupting rating at 240V. It features a feed-thru configuration and is supplied complete with line-side and load-side lug terminals. The THQC32070WL is UL Listed.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: THQC
• Series: THQC
• Type: THQC
• Catalog No.: THQC32070WL
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THQC32070WL
• Catalog Number: THQC32070WL
• Model: THQC32070WL
• Product Family: GE THQC Molded Case Circuit Breakers
• Series: THQC
• Type: THQC
• Brand: General Electric (GE)
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 70A
• UPC:783164012804

Compatibility:

Designed for use with compatible GE Type THQC electrical distribution equipment that accepts THQC Series molded case circuit breakers. The THQC32070WL provides 70A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker features Long-Time and Instantaneous (LI) trip functions, a feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• 70A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA @ 240V Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Complete Breaker
• GE THQC Series
