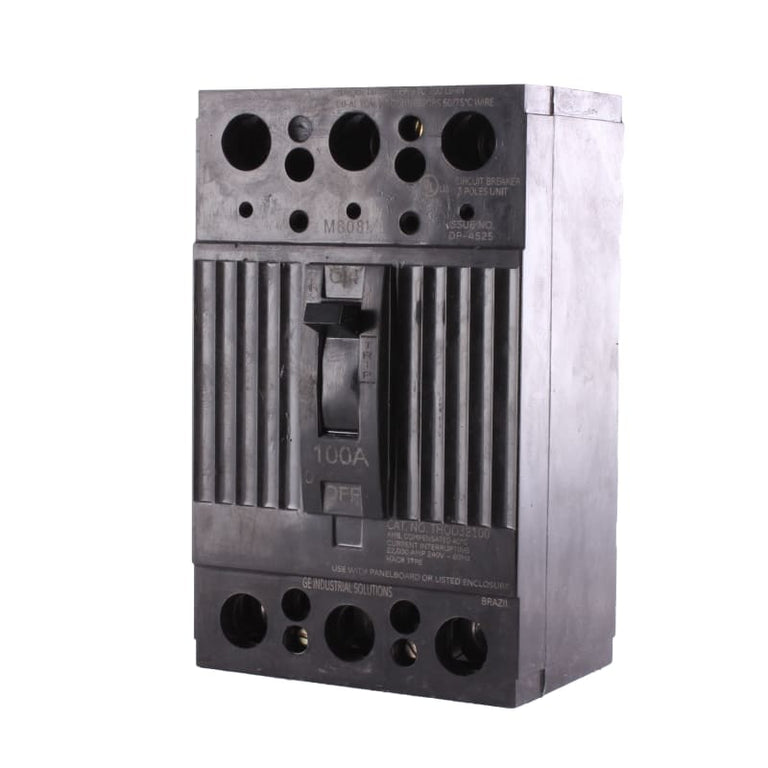

GE THQD32100WL 100 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 22 kA@240 V – Feed-Thru – Q-Line Series

The General Electric THQD32100WL is a 100 Amp, 3-pole, 3-phase molded case circuit breaker from the GE Q-Line Type THQD Series. It is rated for 240 V with a 22 kA interrupting capacity at 240 V. The breaker features a non-interchangeable thermal-magnetic trip unit, high interrupting capacity, 40°C rating, feed-thru mounting, and line and load-side lug terminals.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: Q-Line
• Type: THQD
• Catalog Number / MPN: THQD32100WL
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 22 kA @ 240 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: THQD32100WL
• Series: Q-Line
• Type: THQD
• Current Rating: 100 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Terminals: Line & Load-Side Lug Terminals
• UPC: 783164140132

Compatibility

The GE THQD32100WL is designed for compatible GE Q-Line Type THQD electrical distribution applications. Verify the specific panelboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
