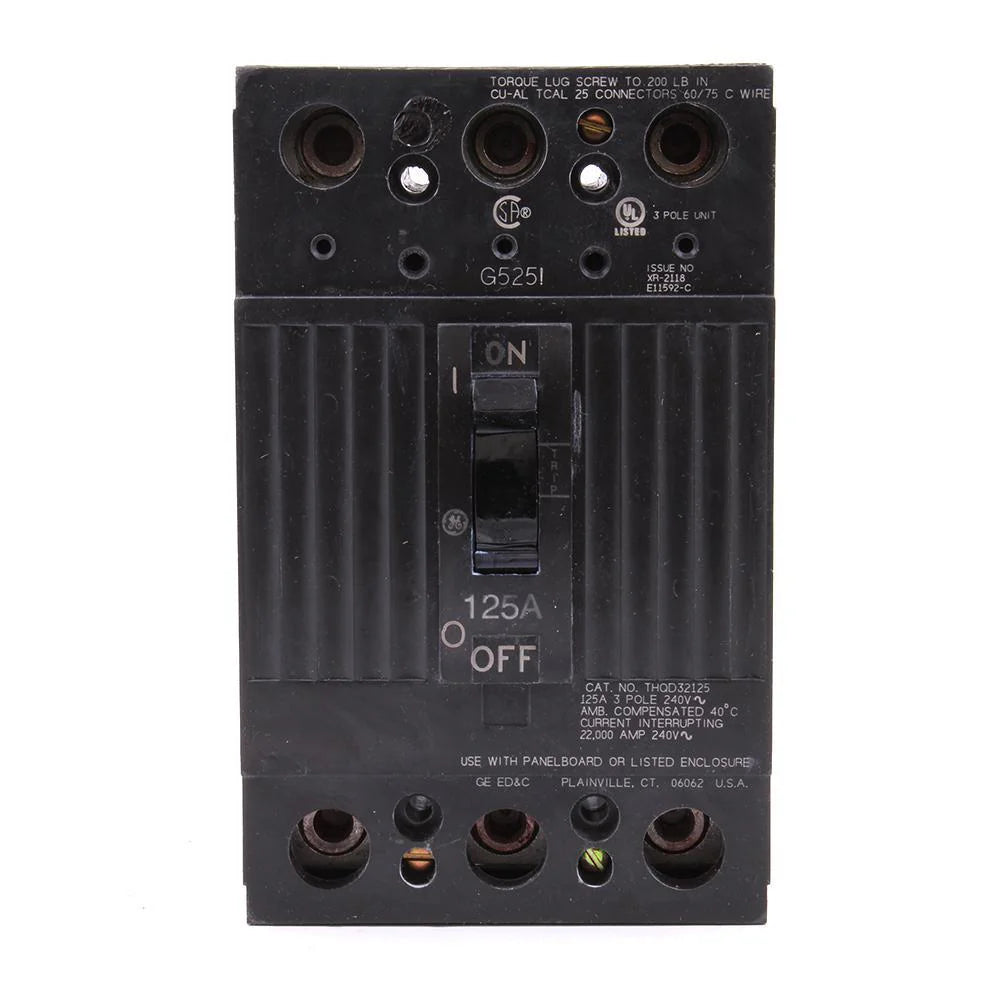

GE THQD32125 125 Amp Molded Case Circuit Breaker – 3 Pole – 240V – 22 kA @ 240V – Q-Line

The General Electric THQD32125 is a Q-Line, Type THQD molded case circuit breaker rated at 125A. It features a thermal-magnetic trip mechanism with a non-interchangeable trip unit, high interrupting capacity, and feed-through connections with line- and load-side lug terminals.

Specifications

• Brand: General Electric (GE)
• Product Line: Q-Line
• Type: THQD
• Model Number: THQD32125
• Rated Current: 125A
• Poles: 3 Pole
• Phase: 3 Phase
• Rated Voltage: 240V
• Interrupting Capacity: 22 kA @ 240V
• Interrupting Rating: High
• Trip Unit: Non-interchangeable
• Trip Technology: Thermal-Magnetic
• Temperature Rating: 40°C
• Connection: Feed-through
• Terminals: Line- and load-side lug terminals

Part Numbers & Identification

• Manufacturer: General Electric (GE)
• MPN: THQD32125
• Product Line: Q-Line
• Frame/Type: THQD
• Product Type: Molded Case Circuit Breaker
• UPC:783164087925

Compatibility

Designed for GE Q-Line applications requiring a 125A, three-pole, 240V molded case circuit breaker with 22 kA interrupting capacity, a non-interchangeable thermal-magnetic trip unit, and feed-through connections with line- and load-side lug terminals.
