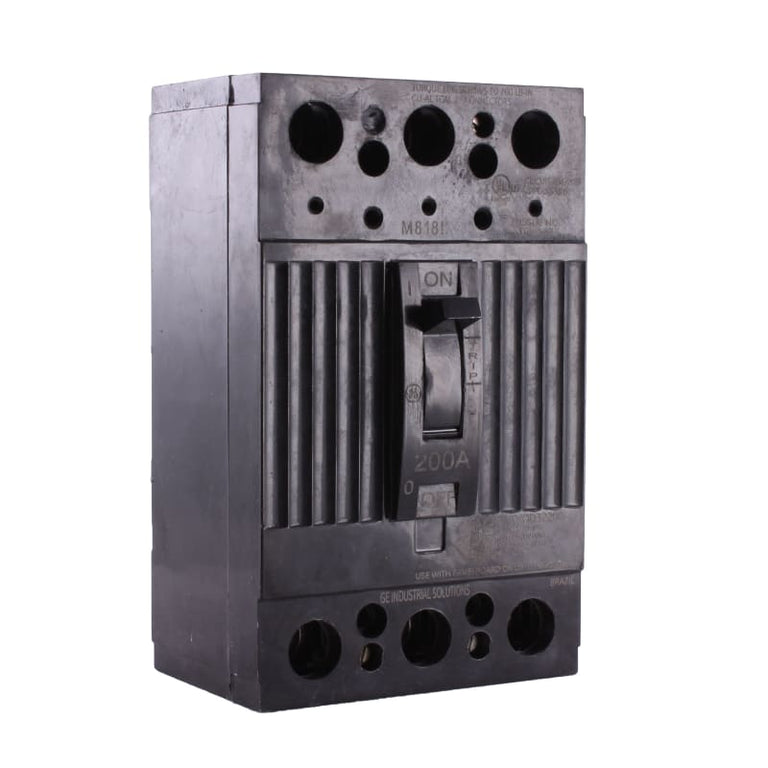

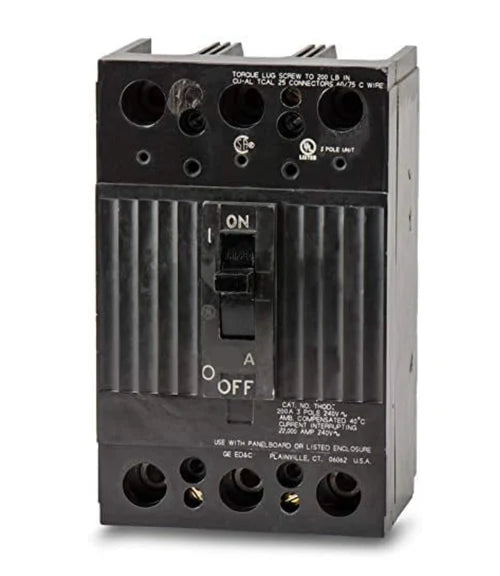

GE THQD32200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V AC – 22kAIC @ 240V – Bolt-On – Q-Line Series

The General Electric THQD32200 is a 200A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the GE Q-Line Series. It is designed to provide reliable overcurrent protection for compatible commercial and industrial electrical distribution applications.

The THQD32200 is rated for 240V AC and provides a 22kAIC interrupting rating at 240V AC. It features Long-Time and Instantaneous trip functions and uses a bolt-on connection with line- and load-side lug terminals. The breaker is UL Listed.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Series / Frame: THQD / Q-Line
• Catalog No.: THQD32200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V AC
• Interrupting Rating: 22kAIC @ 240V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous
• Connection Type: Bolt-On
• Terminal Type: Line-Side and Load-Side Lugs
• Wire Size Range: (2) 1 AWG to 300 kcmil Copper/Aluminum
• Temperature Rating: -13°F to 158°F (-25°C to 70°C)
• Application: Commercial and Industrial Overcurrent Protection
• Brand: General Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THQD32200
• Catalog Number: THQD32200
• Model: THQD32200
• Product Family: GE Q-Line Circuit Breakers
• Series: THQD / Q-Line
• Brand: General Electric
• Manufacturer: GE
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Long-Time and Instantaneous

Compatibility:

Designed for use with compatible GE Q-Line electrical distribution equipment that accepts THQD Series bolt-on molded case circuit breakers. The THQD32200 provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 240V AC applications.

The breaker uses bolt-on line- and load-side lug connections and accommodates (2) 1 AWG to 300 kcmil copper or aluminum conductors. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, conductor size, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• GE Q-Line Series
• 200A Rated
• 3-Pole / 3-Phase
• 240V AC Rated
• 22kAIC @ 240V AC Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous Trip Functions
• Bolt-On Connection
• Line-Side and Load-Side Lug Terminals
• -25°C to 70°C Temperature Rating
• UPC: 783164087987
• GTIN: 00783164087987
• Weight: Approximately 3.97 lb
• Country of Origin: USA
