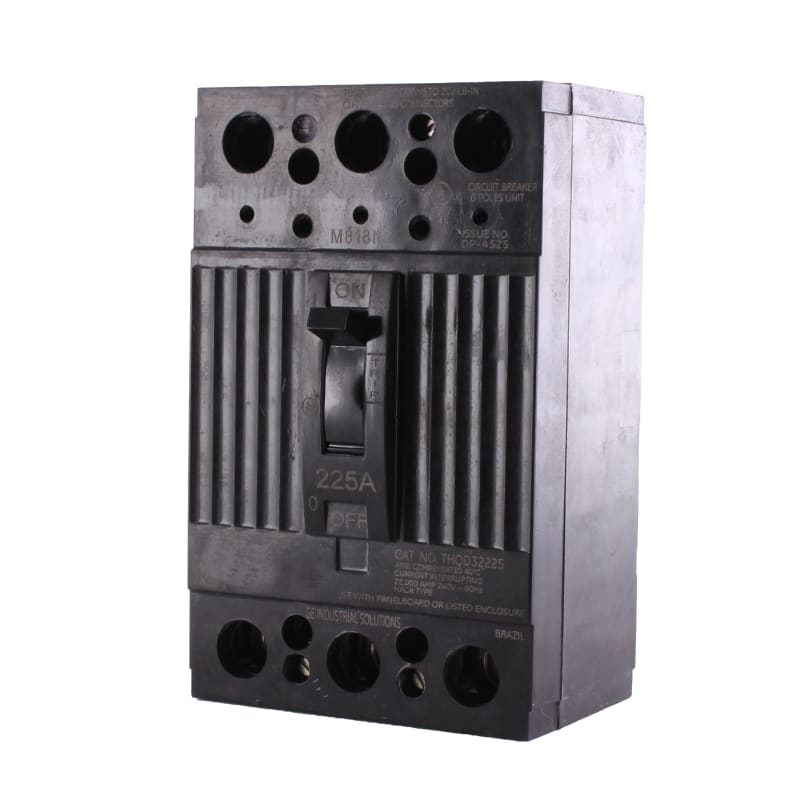

GE THQD32225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 240V – 22kA @ 240V – Feed-Thru – Q-Line THQD Series

The GE THQD32225 is a 225A, 3-pole, 3-phase molded case circuit breaker from the General Electric Q-Line Type THQD Series. It features thermal-magnetic protection with a non-interchangeable trip unit.

The THQD32225 is rated for 240V and provides a 22kA interrupting rating at 240V with high interrupting capacity. It features a feed-thru configuration with line-side and load-side lug terminals and is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Q-Line
• Series: THQD
• Type: THQD
• Catalog No.: THQD32225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 22kA @ 240V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Unit: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THQD32225
• Catalog Number: THQD32225
• Model: THQD32225
• Product Family: GE Q-Line Circuit Breakers
• Series: THQD
• Type: THQD
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• UPC:783164088007

Compatibility:

Designed for use with compatible GE Q-Line Type THQD electrical distribution equipment that accepts THQD Series molded case circuit breakers. The THQD32225 provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker features a non-interchangeable trip unit, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific load center or panelboard model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
