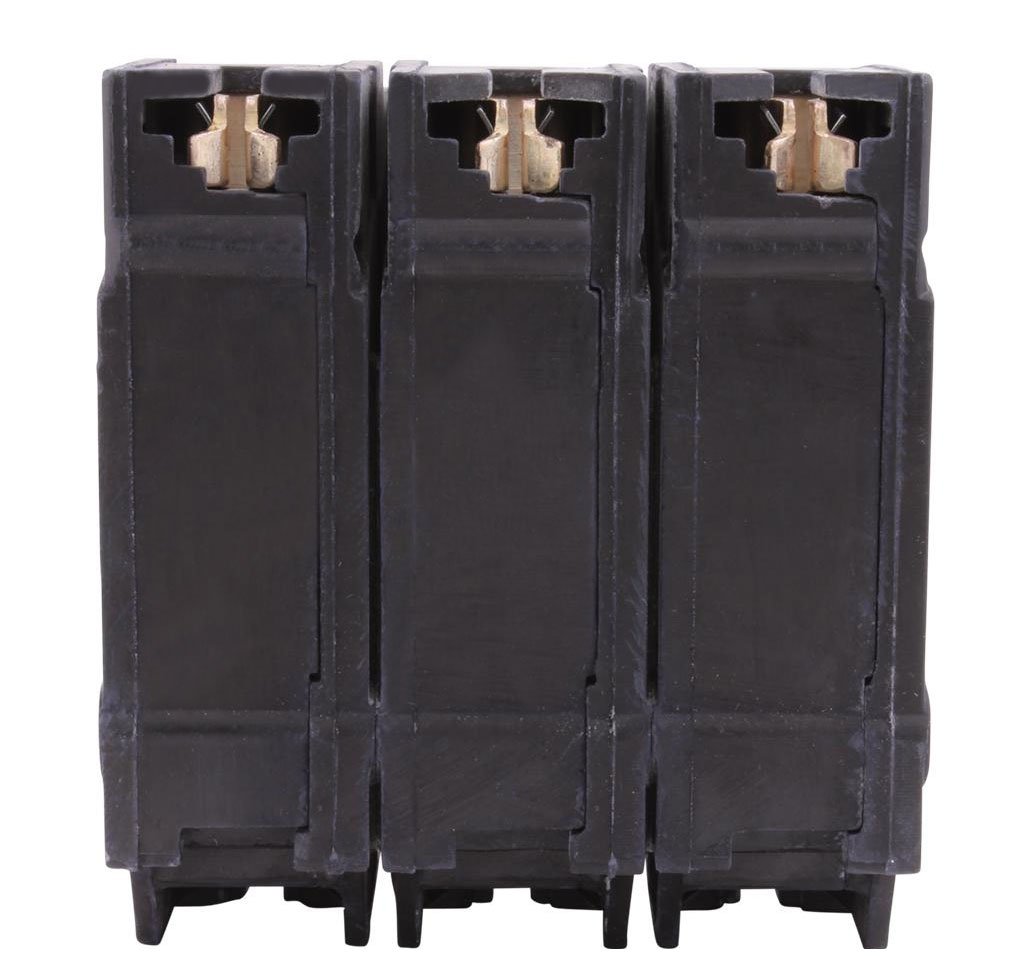

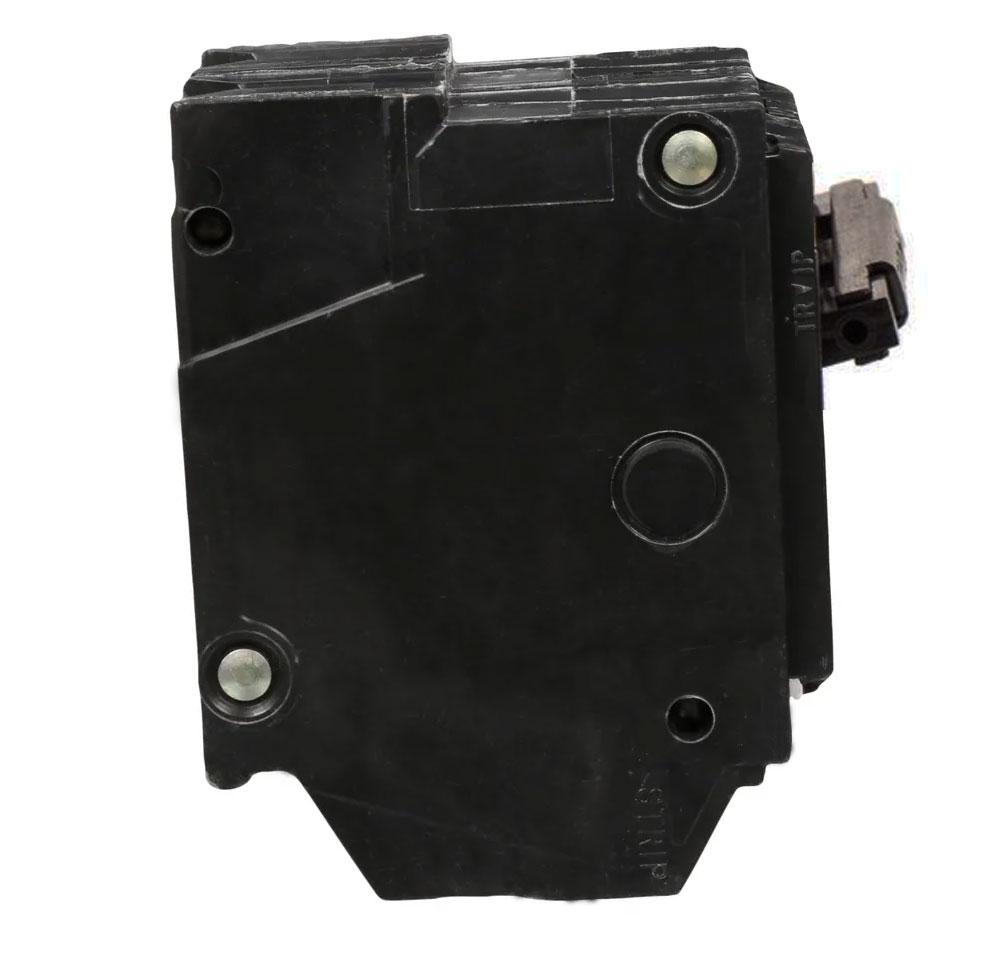

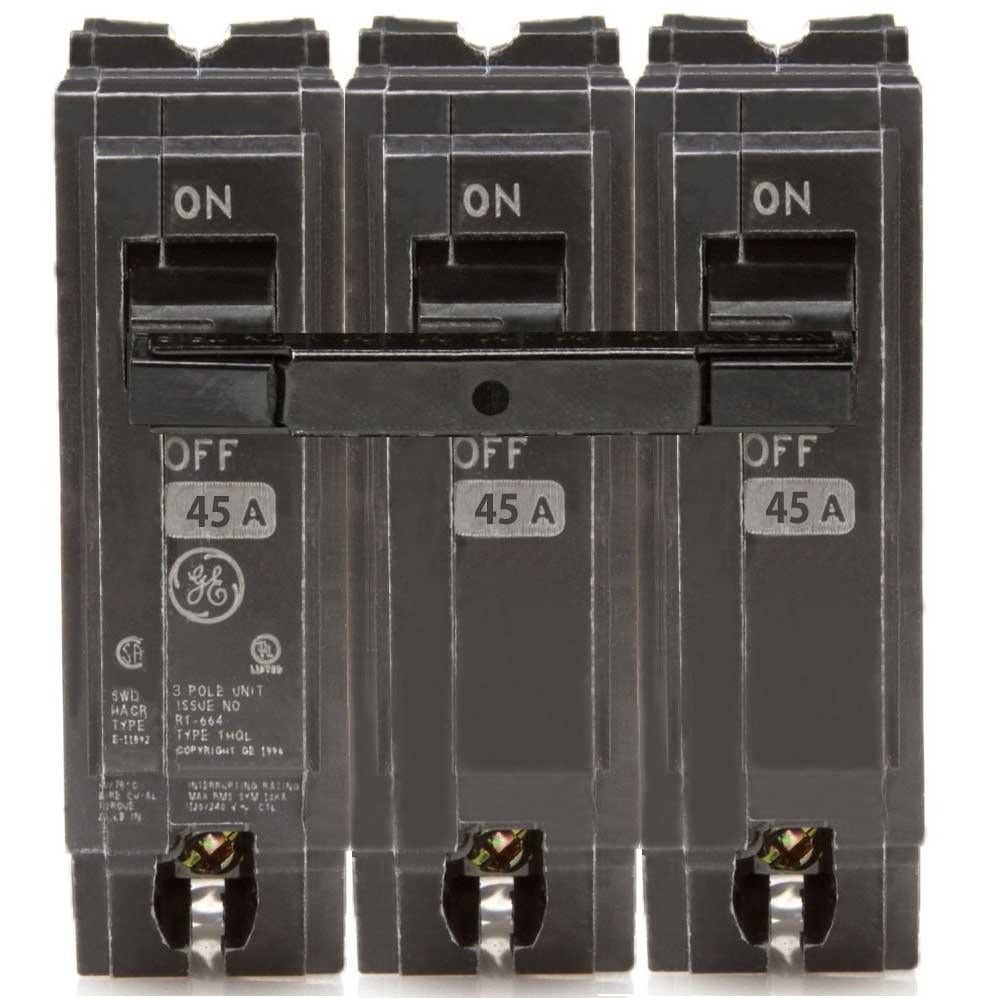

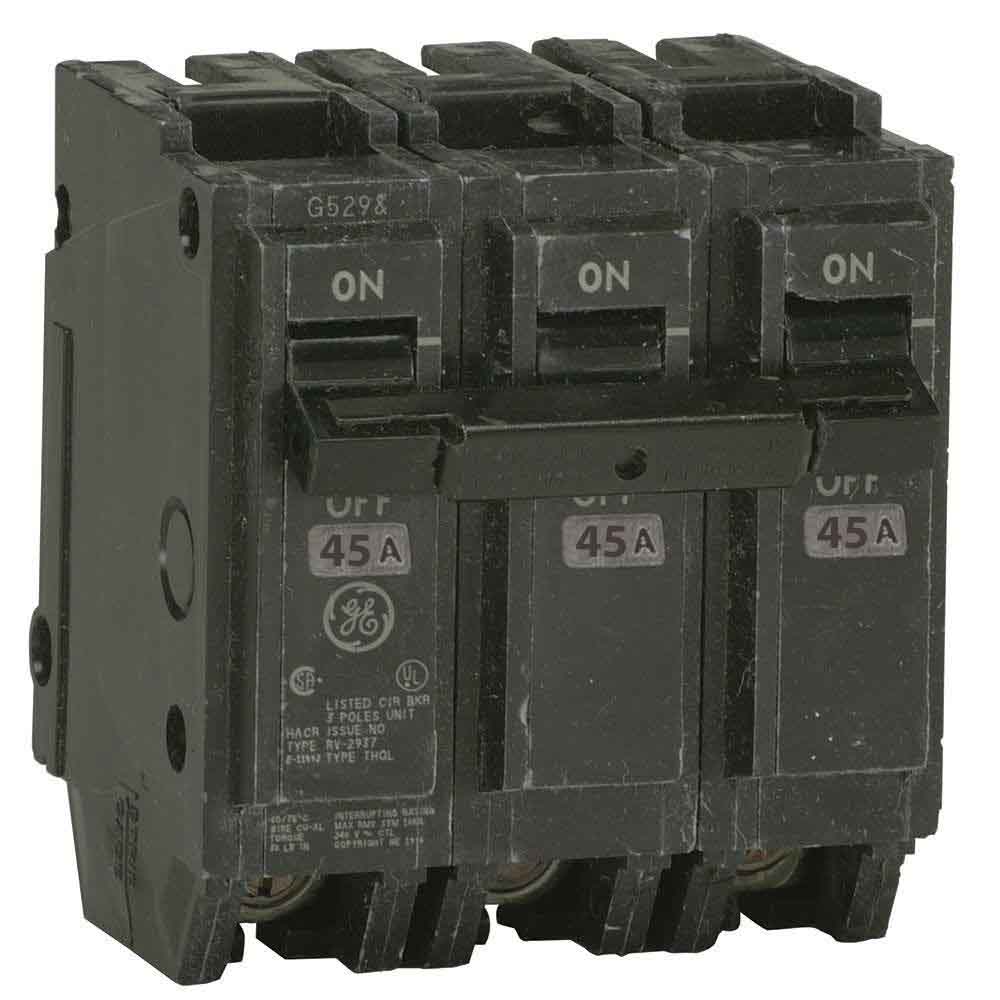

GE THQL32045 Circuit Breaker – 45A – 3-Pole – 240V – 10kA @ 240V – Plug-In – THQL Series

The GE THQL32045 is a 45A, 3-pole, 240V plug-in molded case circuit breaker from the THQL Series. It features thermal-magnetic protection and a 10kA interrupting rating at 240V. The breaker includes internal common trip with Long-Time and Instantaneous (LI) trip functions and a load-side lug terminal.

The THQL32045 is designed for use on compatible AL panelboards and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Series: THQL
• Catalog No.: THQL32045
• Current Rating: 45A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Configuration: Internal Common Trip
• Mounting Type: Plug-In
• Terminal Configuration: Load-Side Lug Terminal
• Application: Electrical Distribution and Overcurrent Protection
• Panelboard Compatibility: AL Panelboards
• Reverse Feed: Suitable for Reverse-Fed Applications

Part Numbers & Identification:

• Manufacturer Part Number (MPN): THQL32045
• Catalog Number: THQL32045
• Product Family: GE THQL Circuit Breakers
• Series: THQL
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: THQL32045
• Breaker Configuration: 3-Pole, 45A
• upc:783164060355

Compatibility:

Designed for use with compatible GE THQL Series electrical distribution equipment and AL panelboards. The THQL32045 is a 3-pole, 45A, 240V thermal-magnetic molded case circuit breaker with a 10kA interrupting rating at 240V, internal common trip, and LI trip functions.

The breaker is suitable for reverse-fed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, mounting arrangement, and terminal requirements before installation.

Certifications:

• 10kA Interrupting Rating @ 240V
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Internal Common Trip
• Suitable for Reverse-Fed Applications
• Genuine General Electric Product
