TJJ426400WL - General Electric Bolt-on Panelboard 600V 400A 2 pole circuit breaker 30kA@480V
Couldn't load pickup availability
Ask an expert
Description
TJJ426400WL

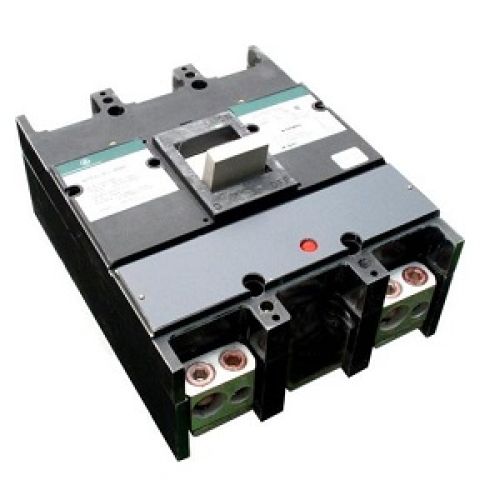

The General Electric TJJ426400WL is a Molded Case Circuit Breaker. This type TJJ circuit breaker is a member of The J600 Line family. The TJJ426400WL is a 2 pole, 600 Volt, 400 amp rated circuit breaker, with an AIC rating of 30kA@480V. The TJJ426400WL is manufactured by General Electric. The TJJ426400WL uses a Bolt-on Panelboard connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: TJJ426400WL
- Manufacturer : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : J600 Line
- Type : TJJ
- Voltage : 600
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 30kA@480V
- Connection : Bolt-on Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Line/Load Lug
- Frame Size : 600A/TJJ
- MCM Size : Min. Wire Size 2 AWG (Al), 6 AWG (Cu) Max. Wire Size 250 MCM (Al), 600 MCM (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
- Type Circuit Breakers
- Vendor GE
- Brand GE
- Electrical Rating Feed-Thru - 225 Amp - 2 Pole - 600 Volt
