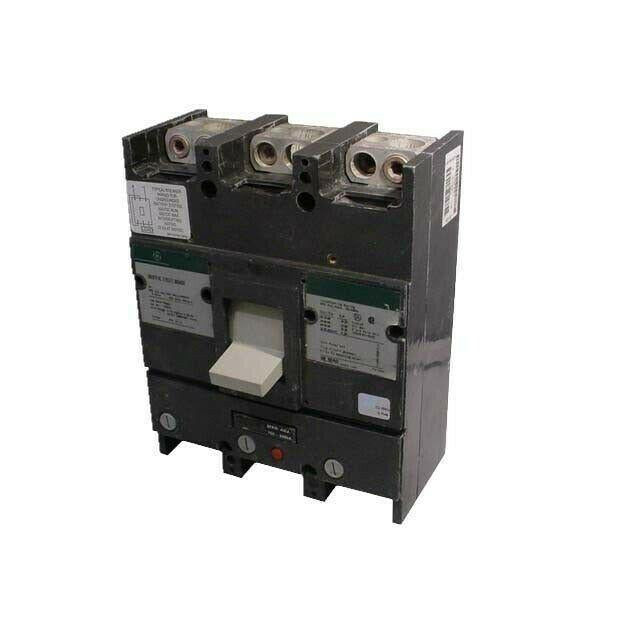

GE TJJ436200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V – 30kA @ 480V – Feed-Thru – J600 Series

The GE TJJ436200 is a 200A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the GE J600 Line, Type TJJ Series. It is designed for compatible electrical distribution applications and provides overcurrent protection for suitable electrical systems.

The TJJ436200 is rated for 600V and provides a 30kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line- and load-side lug terminals, and a non-interchangeable trip unit. The breaker is rated for operation at 40°C and is suitable for reverse-feed applications.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: J600 Line
• Series: TJJ
• Type: TJJ
• Catalog No.: TJJ436200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 30kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Feed Applications
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TJJ436200
• Catalog Number: TJJ436200
• Model: TJJ436200
• Product Family: GE J600 Line Circuit Breakers
• Series: TJJ
• Type: TJJ
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Rated Current: 200A
• Rated Voltage: 600V
• Trip Configuration: Non-Interchangeable Trip Unit
• UPC:783164013597

Compatibility:

Designed for use with compatible GE J600 Line Type TJJ electrical distribution equipment that accepts TJJ Series molded case circuit breakers. The TJJ436200 provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration, line- and load-side lug terminals, and a non-interchangeable trip unit. It is also suitable for reverse-feed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• J600 Line
• TJJ Series
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 30kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Feed Applications
• 40°C Rated
