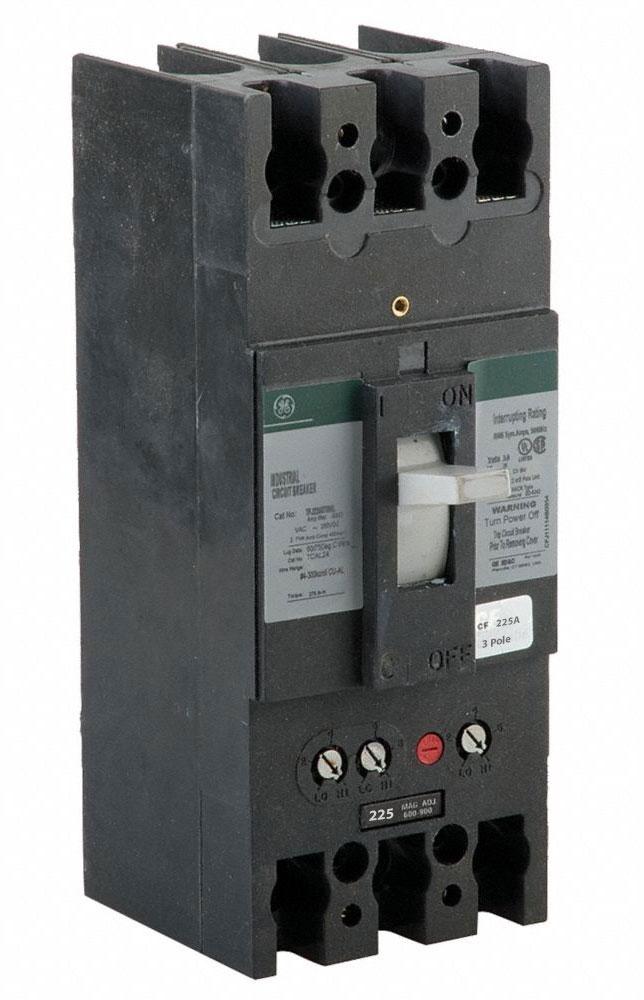

GE TJJ436225WL 225 Amp J600 Line Molded Case Circuit Breaker – 3 Pole – 600V AC – 30 kA @ 480V

The GE TJJ436225WL is a J600 Line molded case circuit breaker designed for three-phase electrical distribution and circuit protection. Rated at 225A and 600V AC, it provides a standard interrupting capacity of 30kA at 480V. The breaker features a feed-through connection, non-interchangeable trip unit, and line-side and load-side lug terminals. It is suitable for reverse-feed applications and is calibrated for operation at 40°C.

Specifications

• Brand: General Electric (GE)
• Product Series: J600 Line
• Catalog Number: TJJ436225WL
• Circuit Breaker Type: Molded Case Circuit Breaker (MCCB)
• Type: TJJ
• Current Rating: 225A
• Number of Poles: 3
• Phase: 3-phase
• Voltage Rating: 600V AC
• Interrupting Capacity: 30kA at 480V AC
• Interrupting Class: Standard
• Connection Type: Feed-through
• Trip Unit: Non-interchangeable
• Terminals: Line-side and load-side lug terminals
• Reverse-Feed Suitability: Suitable
• Calibration Temperature: 40°C

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• MPN: TJJ436225WL
• Product Family: J600 Line
• Type Reference: TJJ
• UPC:783164049596

Compatibility

Designed for compatible GE J600 Line distribution equipment accepting TJJ-frame molded case circuit breakers. Its feed-through configuration, line/load lug terminals, and reverse-feed suitability support compatible three-phase installations requiring 225A protection.
