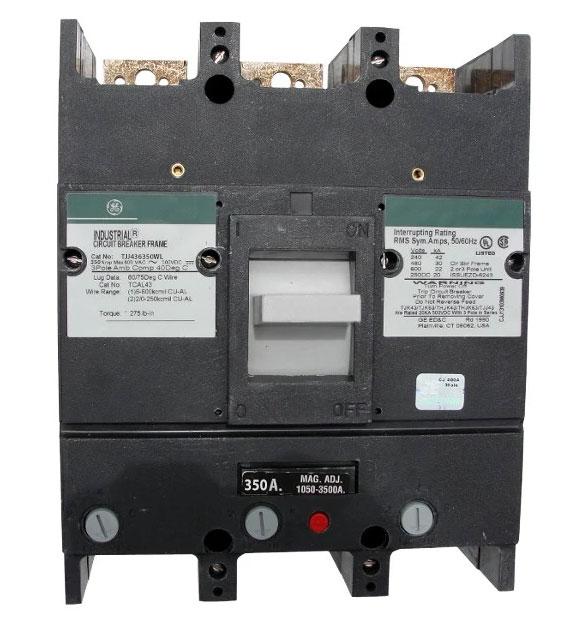

GE TJJ436350WL Molded Case Circuit Breaker – 350A – 3-Pole / 3-Phase – 600V – 30kA @ 480V – Feed-Thru – J600 Series TJJ

The GE TJJ436350WL is a 350A, 3-pole, 3-phase molded case circuit breaker from the General Electric J600 Line, Type TJJ. It features thermal-magnetic protection with a non-interchangeable trip unit and is designed for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 30kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line- and load-side lug terminals, and is suitable for reverse-fed applications. The breaker is calibrated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: J600 Line
• Series: J600
• Type: TJJ
• Catalog No.: TJJ436350WL
• Current Rating: 350A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 30kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TJJ436350WL
• Catalog Number: TJJ436350WL
• Model: TJJ436350WL
• Product Family: GE J600 Line Molded Case Circuit Breakers
• Series: J600
• Type: TJJ
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 350A
• UPC:783164013665

Compatibility:

Designed for use with compatible GE J600 Line Type TJJ electrical distribution equipment that accepts TJJ Series molded case circuit breakers. The TJJ436350WL provides 350A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line- and load-side lug terminals and is suitable for reverse-fed applications.
