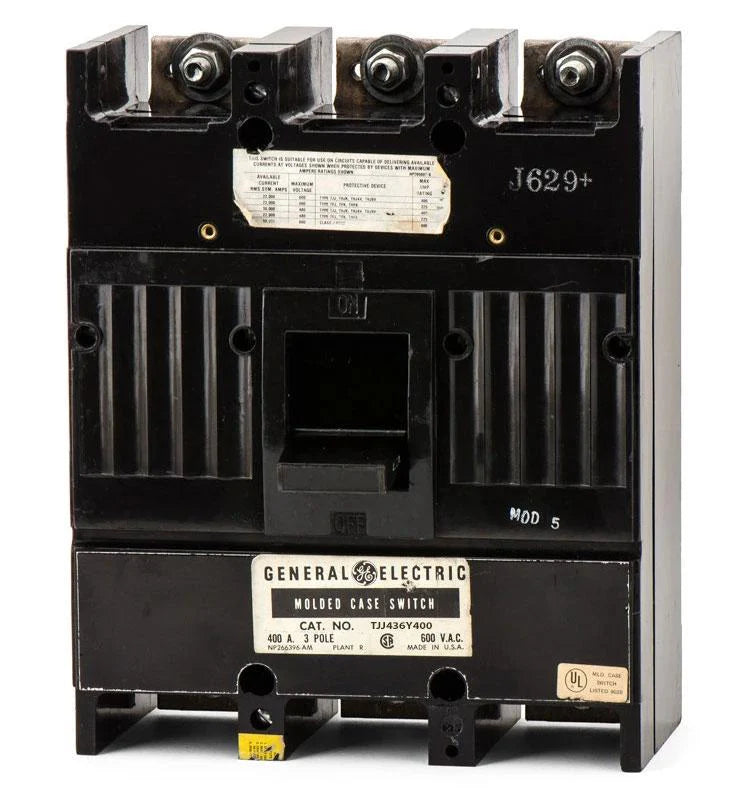

GE TJJ436Y400WL 400 Amp Molded Case Switch – 3 Pole – 600V – 30 kA @ 480V – J600 Line

The General Electric TJJ436Y400WL is a J600 Line, Type TJJ, 400A molded case switch designed for electrical distribution applications. It features a non-interchangeable switch mechanism with no overcurrent protection (NA), standard interrupting capacity, and feed-through connections with line- and load-side lug terminals. It is suitable for reverse-feed applications.

Specifications

• Brand: General Electric (GE)
• Product Line: J600
• Type: TJJ
• Model Number: TJJ436Y400WL
• Rated Current: 400A
• Poles: 3 Pole
• Phase: 3 Phase
• Rated Voltage: 600V
• Interrupting Capacity: 30 kA @ 480V
• Interrupting Rating: Standard
• Trip/Protection: NA – No Overcurrent Protection
• Switch Type: Non-automatic
• Trip Unit: Non-interchangeable
• Temperature Rating: 40°C
• Connection: Feed-through
• Terminals: Line- and load-side lug terminals
• Feed Direction: Suitable for reverse feed

Part Numbers & Identification

• Manufacturer: General Electric (GE)
• MPN: TJJ436Y400WL
• Product Line: J600
• Frame/Type: TJJ
• Product Type: Molded Case Switch
• UPC:783164013726

Compatibility

Designed for GE J600 Line applications requiring a 400A, three-pole, 600V molded case switch with 30 kA interrupting capacity at 480V, no overcurrent protection, feed-through connections, and reverse-feed suitability.
