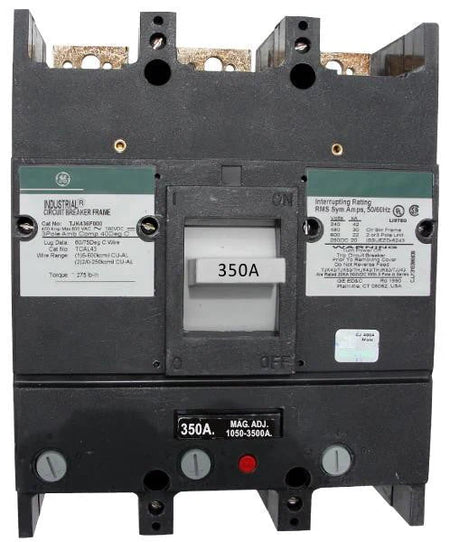

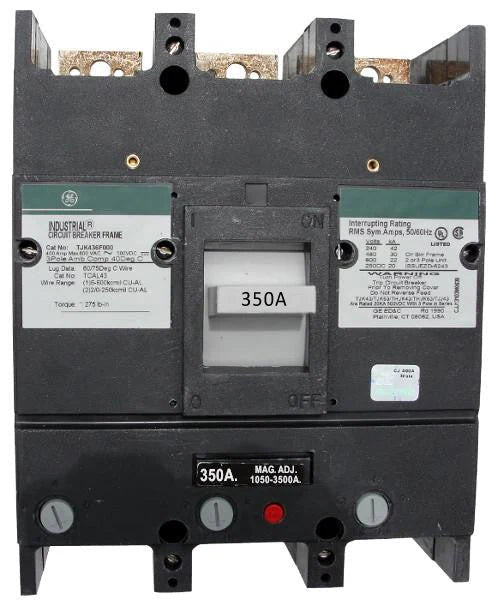

GE TJK436350WL 350 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 30 kA@480 V – Feed-Thru – J600 Line Type TJK

The GE TJK436350WL is a 350 Amp, 3-pole, 3-phase molded case circuit breaker from the GE J600 Line, Type TJK. It is rated for 600 V with a 30 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker uses thermal-magnetic protection with an interchangeable trip unit and is designed for feed-thru mounting with line and load-side lug terminals.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: J600 Line
• Type: TJK
• Catalog Number / MPN: TJK436350WL
• Primary Rating: 350 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 30 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: TJK436350WL
• Series: J600 Line
• Type: TJK
• Current Rating: 350 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 783164050158

Compatibility

The GE TJK436350WL is designed for compatible GE J600 Line Type TJK molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and interchangeable trip unit compatibility before installation.
