GE TJK636250 250 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 30 kA @ 480V – J600 Line

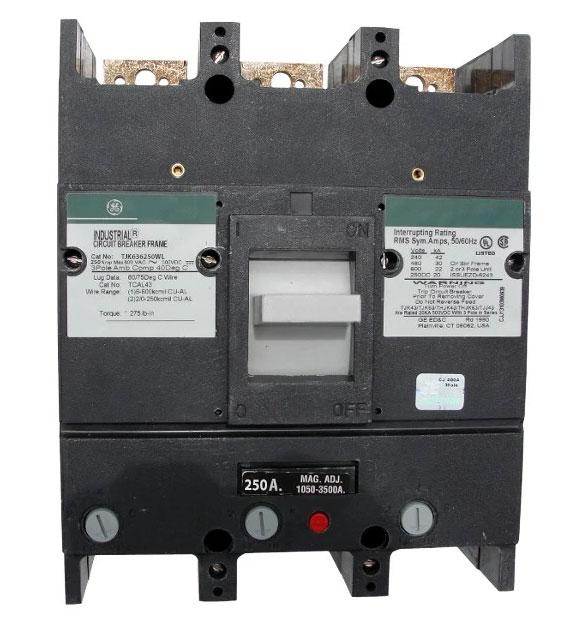

The General Electric TJK636250 is a J600 Line, Type TJK molded case circuit breaker rated at 250A. It features a thermal-magnetic trip mechanism with an interchangeable trip unit, standard interrupting capacity, and feed-through connections with line- and load-side lug terminals.

Specifications

• Brand: General Electric (GE)
• Product Line: J600
• Type: TJK
• Model Number: TJK636250
• Rated Current: 250A
• Poles: 3 Pole
• Phase: 3 Phase
• Rated Voltage: 600V
• Interrupting Capacity: 30 kA @ 480V
• Interrupting Rating: Standard
• Trip Unit: Interchangeable
• Trip Technology: Thermal-Magnetic
• Temperature Rating: 40°C
• Connection: Feed-through
• Terminals: Line- and load-side lug terminals

Part Numbers & Identification

• Manufacturer: General Electric (GE)
• MPN: TJK636250
• Product Line: J600
• Frame/Type: TJK
• Product Type: Molded Case Circuit Breaker
• UPC: 783164050707

Compatibility

Designed for GE J600 Line applications requiring a 250A, three-pole, 600V molded case circuit breaker with 30 kA interrupting capacity at 480V, an interchangeable thermal-magnetic trip unit, and feed-through connections with line- and load-side lug terminals.
