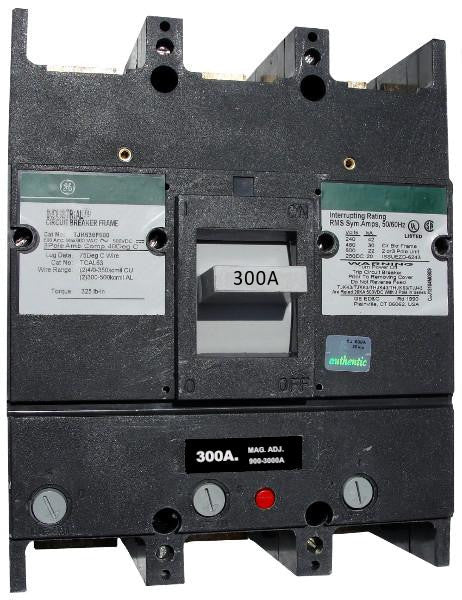

GE TJK636300WL 300 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 30 kA@480 V – Feed-Thru – J600 Line

The General Electric TJK636300WL is a 300 Amp, 3-pole, 3-phase molded case circuit breaker from the GE J600 Line, Type TJK. It is rated for 600 V with a 30 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker includes an interchangeable trip unit, line and load-side lug terminals, and a feed-thru connection.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: J600 Line
• Type: TJK
• Catalog Number / MPN: TJK636300WL
• Primary Rating: 300 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 30 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Unit: Interchangeable
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Calibration Temperature: 40°C

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: TJK636300WL
• Series: J600 Line
• Type: TJK
• Current Rating: 300 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:783164050738

Compatibility

The GE TJK636300WL is designed for compatible GE J600 Line Type TJK electrical distribution applications.
