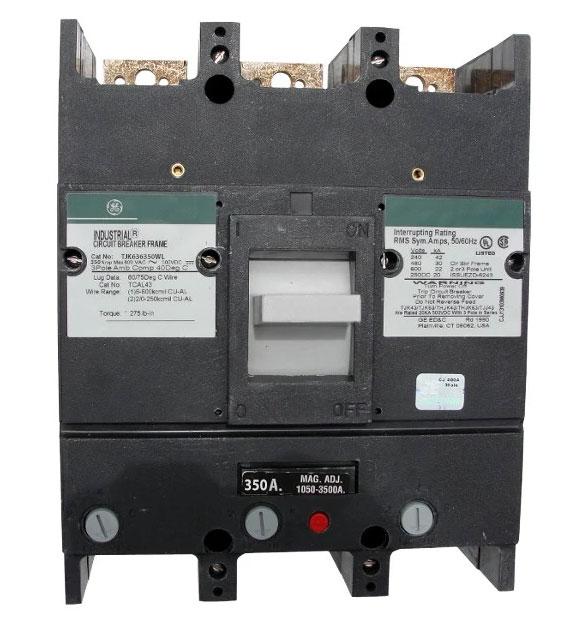

GE TJK636350WL 350 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 30 kA@480 V – Thermal-Magnetic – Feed-Thru – J600 Line

The GE TJK636350WL is a 350 Amp, 3-pole, 3-phase molded case circuit breaker from General Electric's J600 Line, Type TJK. It is rated for 600 V and provides a 30 kA interrupting rating at 480 V, with standard interrupting capacity.

The breaker features an interchangeable thermal-magnetic trip unit designed to provide overload and short-circuit protection in electrical distribution systems. It is calibrated at 40°C and features a feed-thru connection configuration.

The GE TJK636350WL includes line-side and load-side lug terminals for electrical connections in compatible commercial and industrial power distribution equipment.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: J600 Line
• Type: TJK
• Catalog Number / MPN: TJK636350WL
• Primary Rating: 350 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 30 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Calibration Temperature: 40°C
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Protection: Overload and Short-Circuit

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: TJK636350WL
• Series: J600 Line
• Type: TJK
• Current Rating: 350 A
• Pole Count: 3 Pole
• Phase Configuration: 3 Phase
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Interrupting Capacity Classification: Standard
• Connection Type: Feed-Thru
• Calibration: 40°C
• Terminals: Line & Load-Side Lugs
• UPC:783164050752

Compatibility

The GE TJK636350WL is intended for compatible General Electric J600 Line electrical distribution equipment supporting Type TJK, 350 Amp, 3-pole feed-thru molded case circuit breakers with interchangeable thermal-magnetic trip units.
