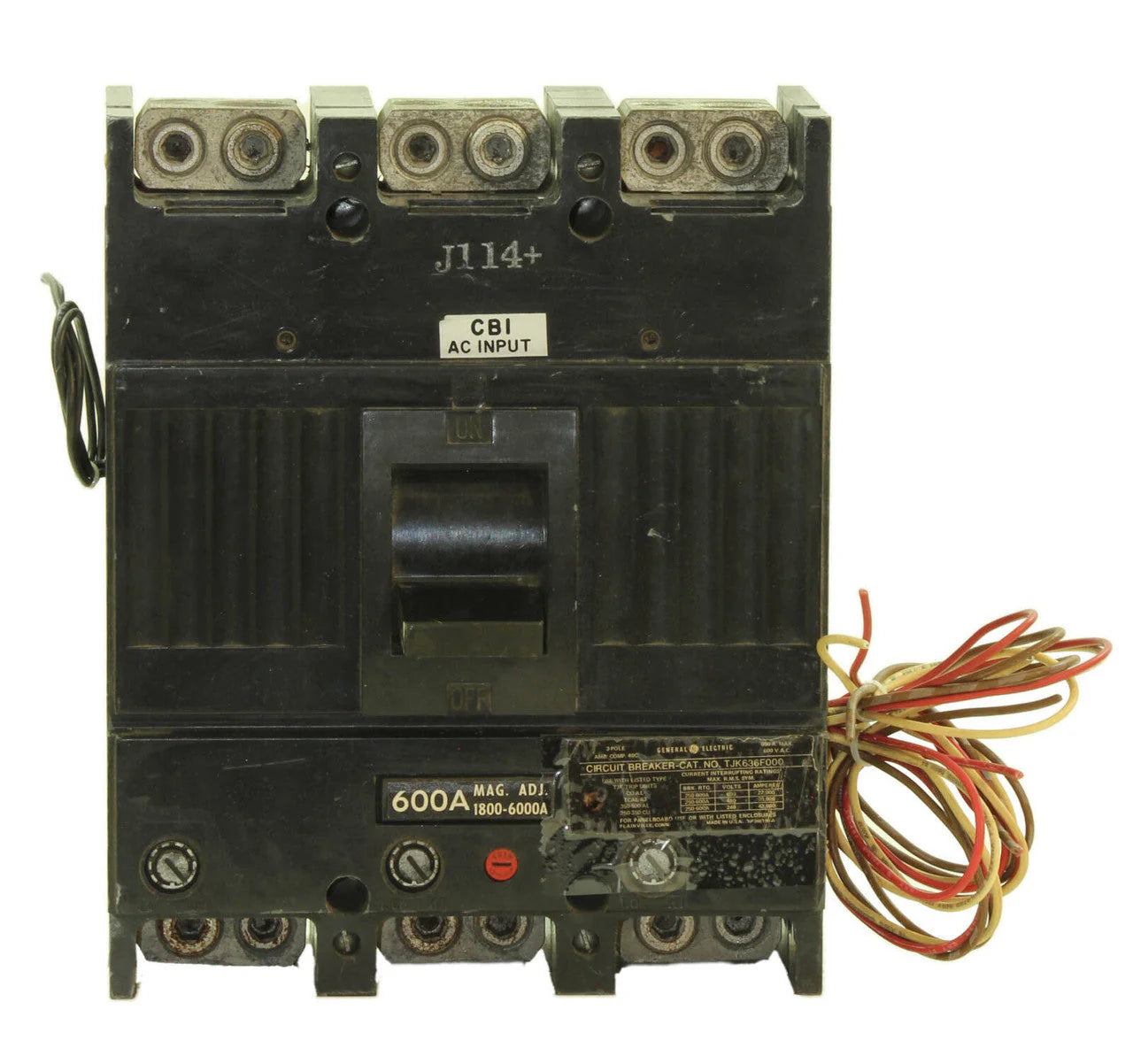

GE TJK636600 600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 30 kA@480 V – Feed-Thru – J600 Line Series

The GE TJK636600 is a 600 Amp, 3-pole molded case circuit breaker from the General Electric J600 Line Series, Type TJK. Designed for electrical distribution applications, it features thermal-magnetic overcurrent protection and an interchangeable trip unit. The breaker is rated for 600 V with a 30 kA interrupting rating at 480 V and standard interrupting capacity. It includes line and load-side lug terminals and is calibrated for 40°C operation.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: J600 Line
• Type: TJK
• Catalog Number / MPN: TJK636600
• Primary Rating: 600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 30 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Calibration Temperature: 40°C
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: TJK636600
• Series: J600 Line
• Type: TJK
• Current Rating: 600 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:783164050806

Compatibility

The GE TJK636600 is intended for compatible GE J600 Line Type TJK electrical distribution applications.
