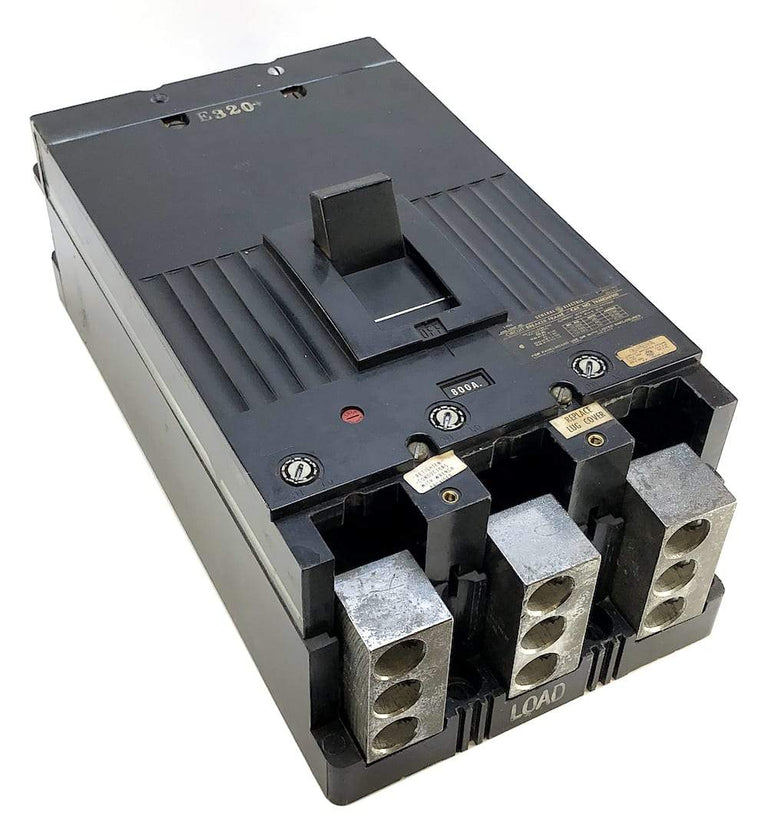

GE TKM836F000 Molded Case Circuit Breaker – 800A – 3-Pole / 3-Phase – 600V – 30kA @ 480V – Bolt-On – K1200 Series

The GE TKM836F000 is an 800A, 3-pole, 3-phase molded case circuit breaker from the General Electric K1200 Line, Type TKM Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The TKM836F000 is rated for 600V and provides a 30kA interrupting rating at 480V. It is a frame-only circuit breaker with a standard interrupting capacity, designed for 40°C operation and bolt-on mounting. The trip unit and other required components are not included with the frame-only configuration.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: K1200 Line
• Series: TKM
• Type: TKM
• Catalog No.: TKM836F000
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 30kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Configuration: Frame Only
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TKM836F000
• Catalog Number: TKM836F000
• Model: TKM836F000
• Product Family: GE K1200 Line Circuit Breakers
• Series: TKM
• Type: TKM
• Brand: General Electric (GE)
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 800A
• Configuration: Frame Only
• UPC:783164015676

Compatibility:

Designed for use with compatible GE K1200 Line, Type TKM electrical distribution equipment that accepts the TKM Series molded case circuit breaker frame. The TKM836F000 is an 800A, 3-pole, 600V thermal-magnetic frame with a 30kA interrupting rating at 480V and bolt-on mounting.

This is a frame-only configuration; the applicable trip unit and other required components must be selected separately as required for the installation.

Always verify the specific panelboard or electrical equipment model, approved breaker frame and trip-unit combination, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• K1200 Line
• TKM Series
• 800A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 30kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Bolt-On Mounting
• 40°C Rated
• Frame Only
