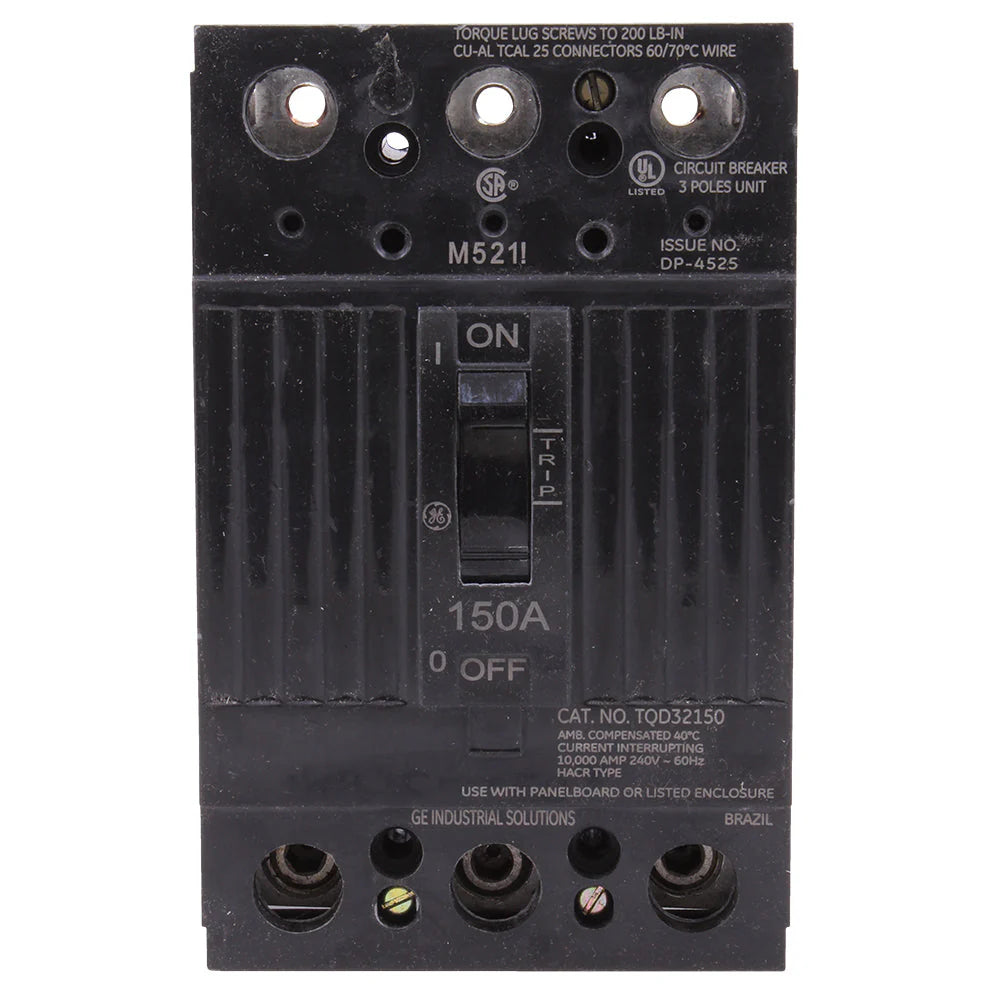

GE TQD32150 Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Feed-Thru – Q-Line TQD Series

The GE TQD32150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the General Electric Q-Line Type TQD Series. It features thermal-magnetic protection with a non-interchangeable trip unit and is designed for compatible electrical distribution applications.

The TQD32150 is rated for 240V and provides a 10kA interrupting rating at 240V with standard interrupting capacity. It features a feed-thru configuration with line-side and load-side lug terminals and is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Q-Line
• Series: TQD
• Type: TQD
• Catalog No.: TQD32150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Unit: Non-Interchangeable Trip Unit
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TQD32150
• Catalog Number: TQD32150
• Model: TQD32150
• Product Family: GE Q-Line Circuit Breakers
• Series: TQD
• Type: TQD
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• Trip Configuration: Non-Interchangeable Trip Unit
• UPC:783164021301

Compatibility:

Designed for use with compatible GE Q-Line Type TQD electrical distribution equipment that accepts TQD Series molded case circuit breakers. The TQD32150 provides 150A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker features a non-interchangeable trip unit, standard interrupting capacity, and a feed-thru configuration with line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, temperature requirements, and installation requirements before installation.
