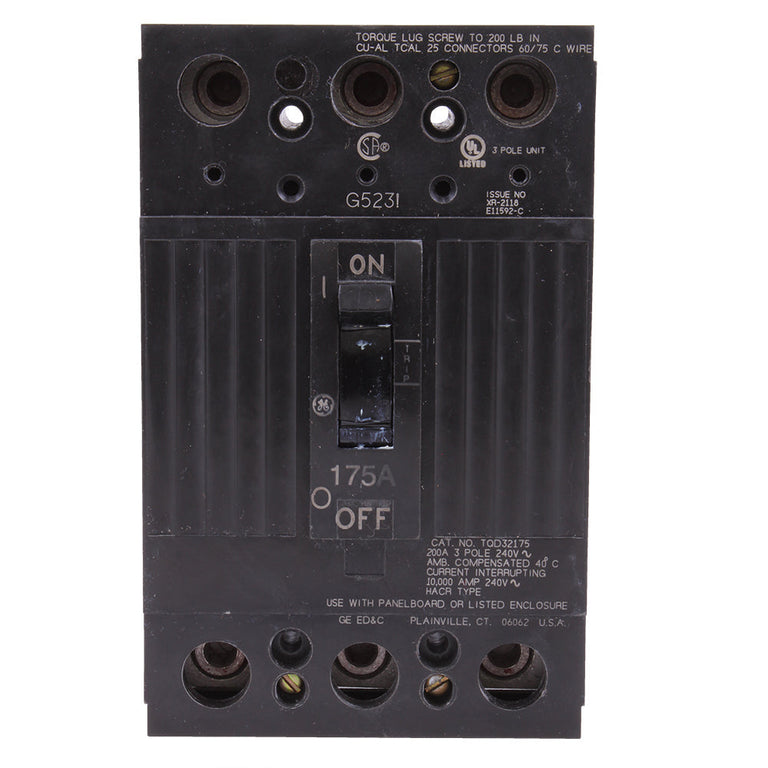

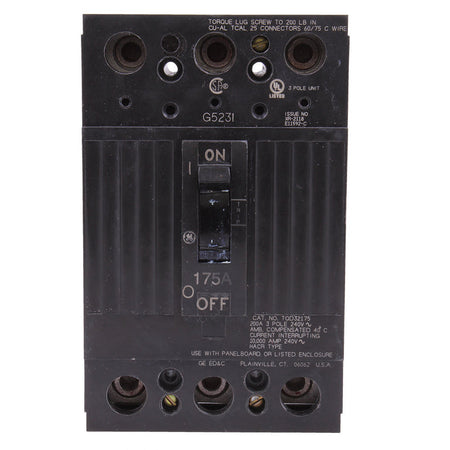

GE TQD32175 175 Amp Molded Case Circuit Breaker – 3 Pole – 240 V – 10 kA@240 V – Feed-Thru – Q-Line Series

The GE TQD32175 is a 175 Amp, 3-pole molded case circuit breaker from the General Electric Q-Line Series, Type TQD. It is rated for 240 V with a 10 kA interrupting rating at 240 V and features standard interrupting capacity. The breaker uses thermal-magnetic protection with a non-interchangeable trip unit and is designed for feed-thru mounting with line & load-side lug terminals. It is suitable for 40°C applications.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: Q-Line
• Type: TQD
• Catalog Number / MPN: TQD32175
• Primary Rating: 175 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 240 V
• Interrupting Rating: 10 kA @ 240 V
• Interrupting Capacity: Standard
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: TQD32175
• Series: Q-Line
• Type: TQD
• Current Rating: 175 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 783164021325

Compatibility

The GE TQD32175 is designed for compatible General Electric Q-Line Type TQD electrical distribution applications. Verify the specific panelboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
