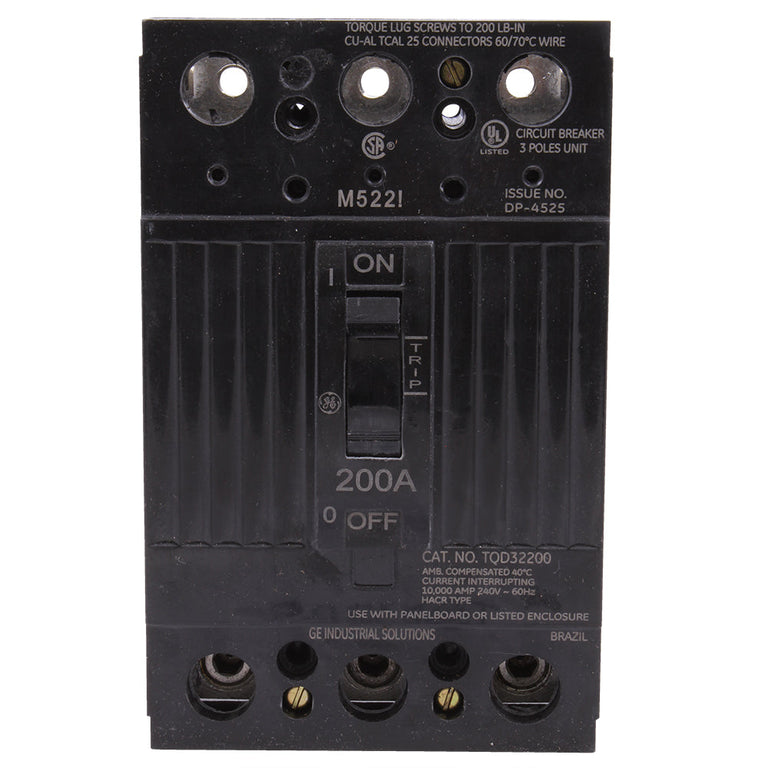

GE TQD32200 Molded Case Circuit Breaker – 200A – 3-Pole – 240V – 10kA @ 240V – Feed-Thru – Q-Line TQD Series

The GE TQD32200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the General Electric Q-Line Type TQD Series. It features thermal-magnetic protection, a non-interchangeable trip unit, and line- and load-side lug terminals.

The breaker is rated for 240V with a 10kA interrupting rating at 240V. It has a feed-thru configuration, a standard interrupting capacity, and is calibrated for a 40°C ambient temperature.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Q-Line
• Series: TQD
• Type: TQD
• Catalog No.: TQD32200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Ambient Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE
• Authenticity: Authentic General Electric Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TQD32200
• Catalog Number: TQD32200
• Product Family: GE Q-Line Circuit Breakers
• Series: TQD
• Type: TQD
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Model: TQD32200
• Breaker Configuration: 3-Pole, 200A
• upc:783164021349

Compatibility:

Designed for use with compatible GE Q-Line Type TQD electrical distribution equipment that accepts the specified molded case circuit breaker configuration. The TQD32200 is a 3-pole, 200A, 240V thermal-magnetic breaker with a non-interchangeable trip unit, feed-thru configuration, and line- and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• GE Q-Line TQD Series
• 200A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• 40°C Ambient Rating
• Genuine General Electric Product
