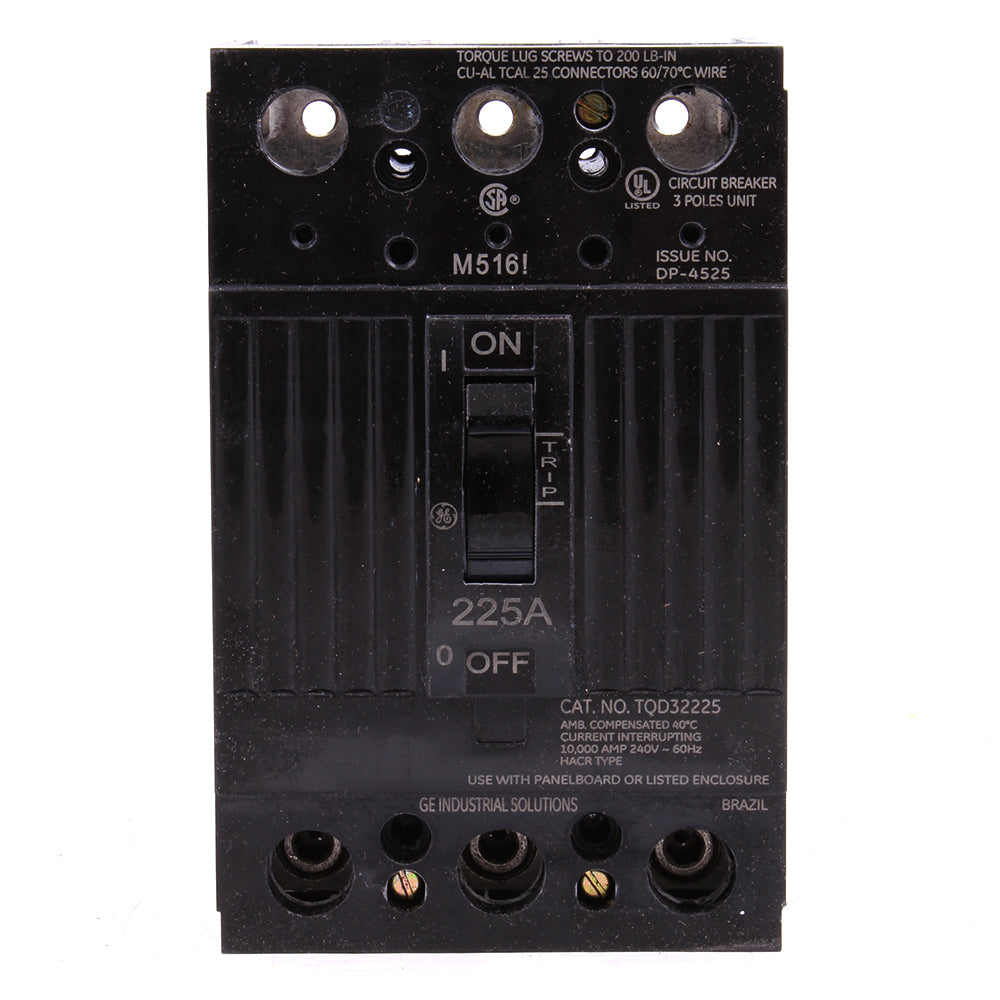

GE TQD32225 Molded Case Circuit Breaker – 225A – 3-Pole – 240V – 10kA @ 240V – Feed-Thru – Q-Line TQD Series

The General Electric (GE) TQD32225 is a 225A, 3-pole, 3-phase molded case circuit breaker from the GE Q-Line Type TQD Series. It features thermal-magnetic protection with a non-interchangeable trip unit and is designed for compatible electrical distribution applications.

The breaker is rated for 240V and provides a 10kA interrupting rating at 240V with a standard interrupting capacity. It features a feed-thru configuration and includes line- and load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Q-Line
• Series: Q-Line
• Type: TQD
• Catalog No.: TQD32225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Ambient Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TQD32225
• Catalog Number: TQD32225
• Product Family: GE Q-Line Molded Case Circuit Breakers
• Series: Q-Line
• Type: TQD
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Model: TQD32225
• Breaker Configuration: 3-Pole, 225A
• upc:783164021363

Compatibility:

Designed for use with compatible GE Q-Line Type TQD electrical distribution equipment that accepts TQD Series molded case circuit breakers. The TQD32225 provides 225A, 3-pole protection for compatible 240V, 3-phase applications.

The breaker features thermal-magnetic protection, a non-interchangeable trip unit, feed-thru configuration, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Q-Line Type TQD
• 225A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• 40°C Rated
