GE TQD32225ST1 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Bolt-On – Q-Line TQD Series

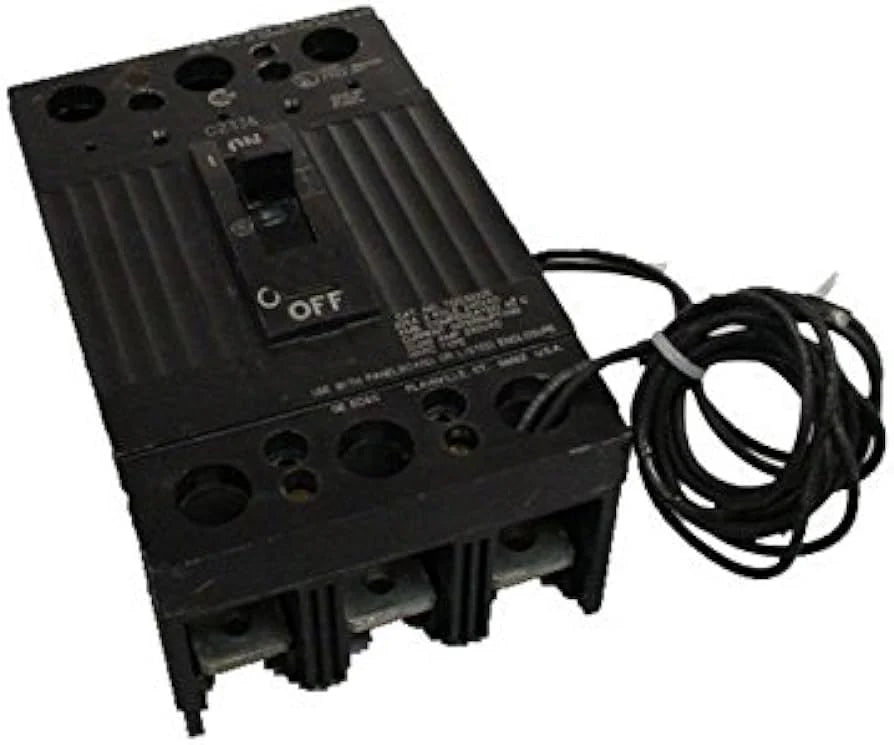

The GE TQD32225ST1 is a 225A, 3-pole, 3-phase molded case circuit breaker from the General Electric Q-Line Type TQD Series. It is designed for compatible electrical distribution applications and features a bolt-on connection.

The breaker is rated for 240V and provides a 10kA interrupting rating at 240V with standard interrupting capacity. It includes a factory-installed 120V AC shunt trip and load-side lug terminals, with operation specified at 40°C.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Q-Line
• Series: TQD
• Type: TQD
• Catalog No.: TQD32225ST1
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Interrupting Capacity: Standard
• Trip Accessory: Factory-Installed Shunt Trip
• Shunt Trip Voltage: 120V AC
• Mounting / Connection: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): TQD32225ST1
• Catalog Number: TQD32225ST1
• Model: TQD32225ST1
• Product Family: GE Q-Line Circuit Breakers
• Series: TQD
• Type: TQD
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Accessory: Factory-Installed 120V AC Shunt Trip
• UPC:783164179316

Compatibility:

Designed for use with compatible GE Q-Line Type TQD electrical distribution equipment that accepts bolt-on molded case circuit breakers. The TQD32225ST1 provides 225A protection for compatible 240V electrical distribution applications and includes a factory-installed 120V AC shunt trip.

The breaker uses load-side lug terminals.
