Eaton W+200M3CFC Non-Reversing Starter – 90A – 3-Pole – 600V – NEMA – Advantage Series

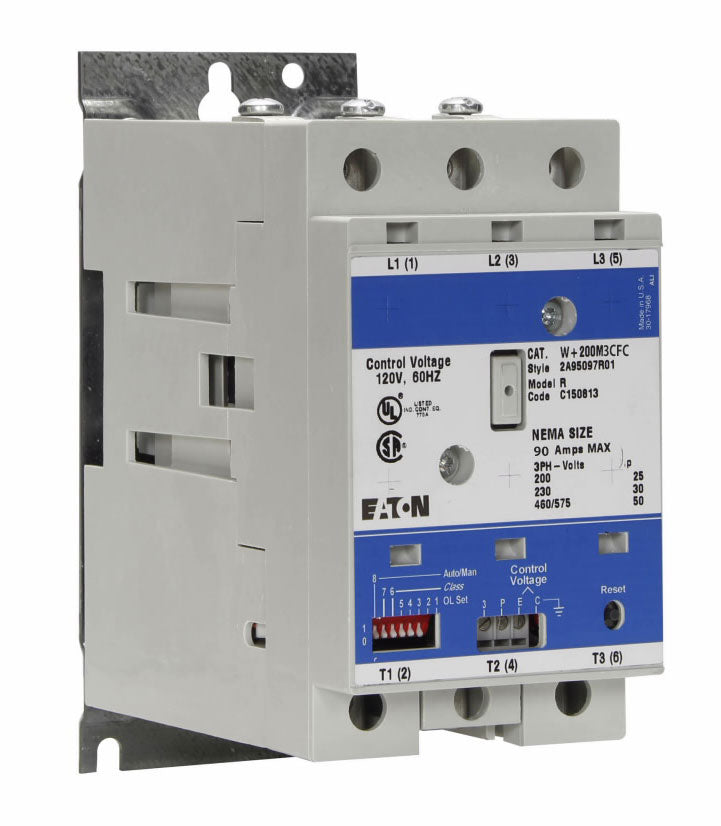

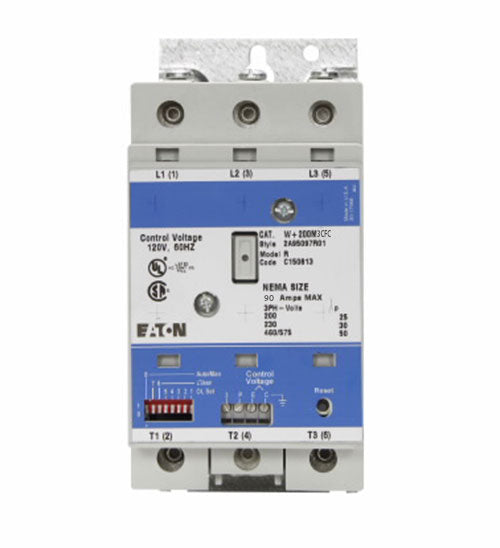

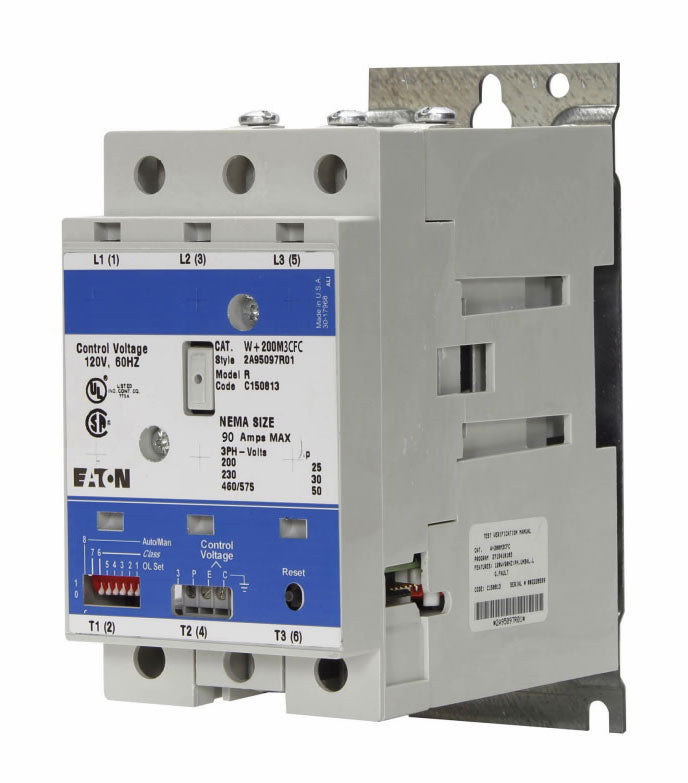

The Eaton W+200M3CFC is a 90A, 3-pole non-reversing NEMA motor starter from the Eaton Cutler-Hammer Advantage Series. It is designed for compatible motor control applications and is part of the W+200 Series.

The starter is suitable for compatible 20 HP and 30 HP motor applications at 230V and 50 HP applications at 460V, as specified. It features an AC non-reversing configuration and is designed for use with Advantage Series motor control systems.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Motor Starter
• Product Family: Advantage Series
• Series: W+200
• Catalog No.: W+200M3CFC
• Starter Type: Non-Reversing
• Current Rating: 90A
• Number of Poles: 3-Pole
• Voltage Rating: 600V
• Starter Configuration: AC Non-Reversing
• NEMA Size: NEMA
• Motor Rating: 20 HP and 30 HP @ 230V; 50 HP @ 460V
• Coil Type: AC Coil
• Coil Frequency: 60 Hz
• Coil Voltage: Not specified
• Application: Motor Control
• Compatible System: Advantage Series Motor Control Systems
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): W+200M3CFC
• Catalog Number: W+200M3CFC
• Model: W+200M3CFC
• Product Family: Eaton Advantage Series
• Series: W+200
• Type: W+200
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: NEMA Motor Starter
• Starter Configuration: 3-Pole, 90A
• Starter Type: Non-Reversing
• upc:786685879727

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Advantage Series motor control systems. The W+200M3CFC is a 3-pole, 90A non-reversing NEMA starter intended for compatible motor-control applications.

The supplied motor ratings include 20 HP and 30 HP at 230V and 50 HP at 460V. Always verify the specific motor horsepower, full-load current, system voltage, coil voltage, control-circuit requirements, NEMA size, and installation requirements before installation.

Certifications:

• 90A Rated
• 3-Pole
• 600V Rated
• NEMA Motor Starter
• Non-Reversing Configuration
• AC Coil
• 60 Hz
• 20 HP / 30 HP @ 230V
• 50 HP @ 460V
• Eaton Advantage Series
• W+200 Series
