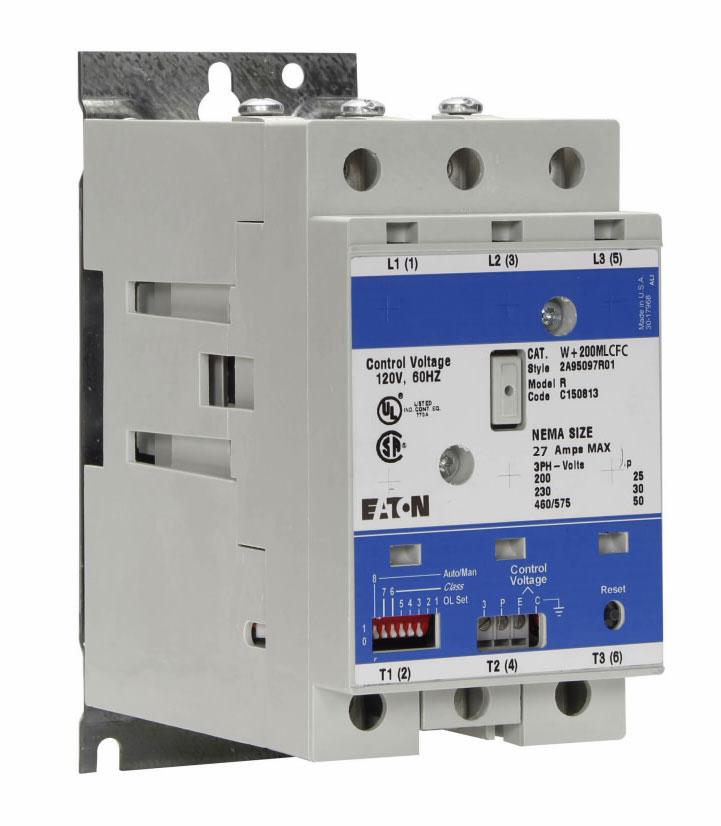

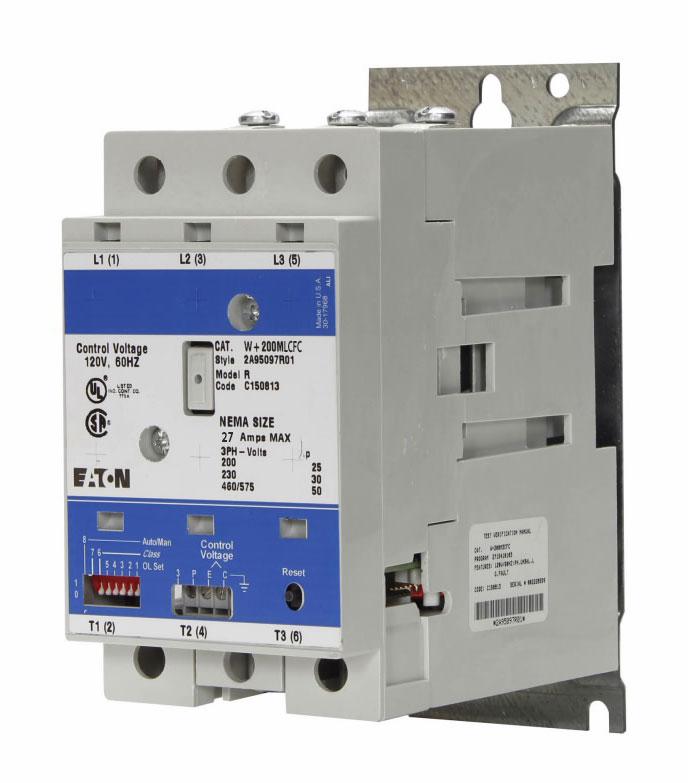

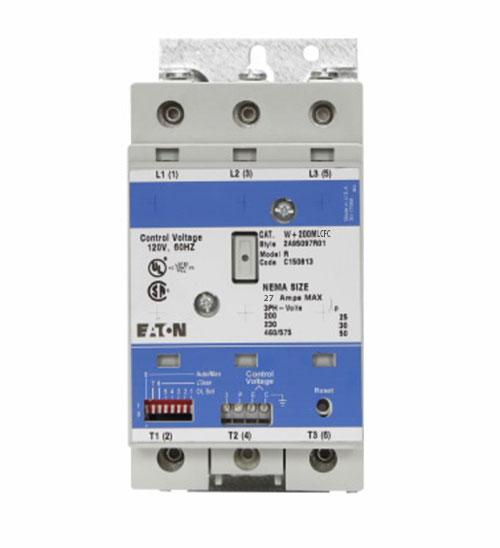

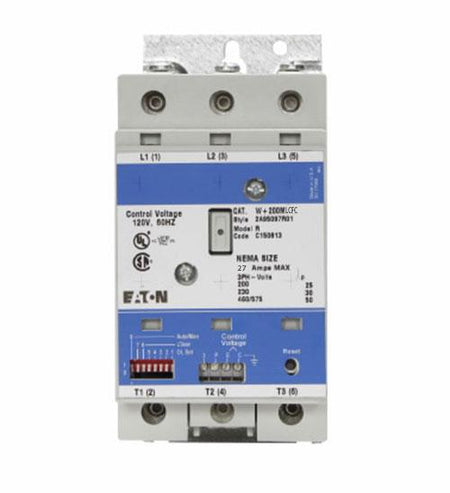

Eaton W200MLCFC Magnetic Motor Starter – 27A – 3-Pole / 3-Phase – 600V AC – 10HP @ 460/575V – Open Type – Advantage Series

The Eaton / Cutler-Hammer W200MLCFC is a 27A, 3-pole, 3-phase non-reversing magnetic motor starter from the Eaton Advantage Series. It is designed for reliable across-the-line motor starting and control in industrial and commercial applications.

The starter is rated for up to 600V AC and features a 120V AC control coil at 60 Hz. It uses a NEMA Size 1 lower-range frame and is designed as an open-type starter for compatible panel, enclosure, machinery, OEM equipment, and motor control applications.

The W200MLCFC supports motor ratings up to 10 HP, including 7.5 HP at 200/230V AC and 10 HP at 460/575V AC, as specified.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Magnetic Motor Starter
• Product Name: Advantage Series Non-Reversing Magnetic Motor Starter
• Catalog / Part No.: W200MLCFC
• Series: Advantage
• Starter Type: Non-Reversing Magnetic
• Continuous Current Rating: 27A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC Maximum
• Coil Voltage: 120V AC @ 60 Hz
• NEMA Size: Size 1, Lower Range
• Mounting Type: Open Type / Panel Mount
• Application: Across-the-Line Motor Starting and Control
• Horsepower Rating: 7.5 HP @ 200/230V AC; 10 HP @ 460/575V AC
• Enclosure: Open Type
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): W200MLCFC
• Catalog Number: W200MLCFC
• Model: W200MLCFC
• Product Family: Eaton Advantage Series Motor Starters
• Series: Advantage
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Magnetic Motor Starter
• Starter Configuration: Non-Reversing
• Breaker / Starter Rating: 27A
• NEMA Size: 1, Lower Range
• UPC: 782114972496
• GTIN: 00782114972496

Compatibility:

Designed for compatible Eaton / Cutler-Hammer Advantage Series motor control applications requiring a 27A, 3-pole, 3-phase non-reversing magnetic starter. The W200MLCFC is suitable for across-the-line starting of compatible motors and is rated for applications up to 600V AC.

The starter supports 7.5 HP at 200/230V AC and 10 HP at 460/575V AC.
