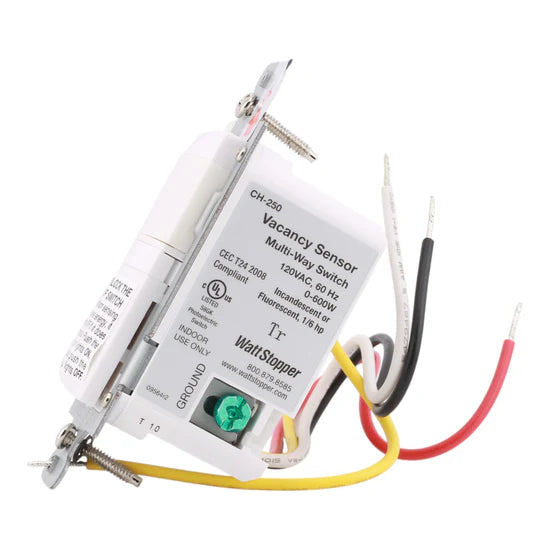

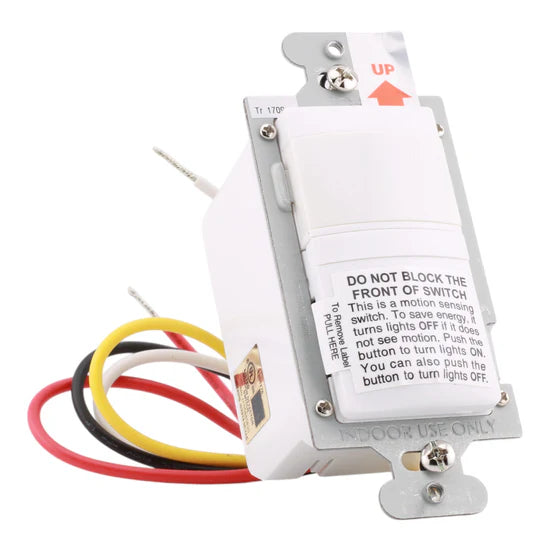

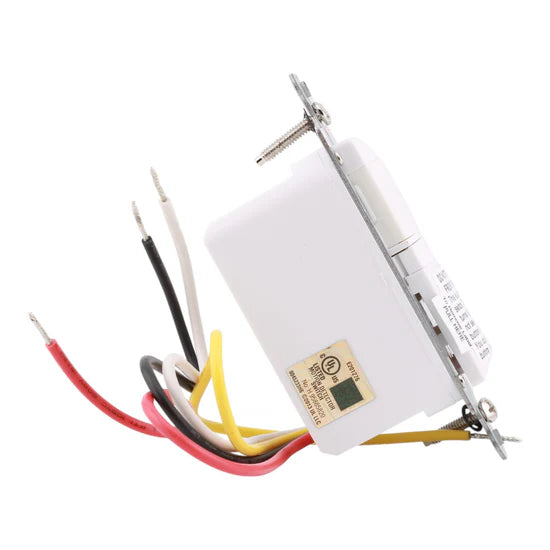

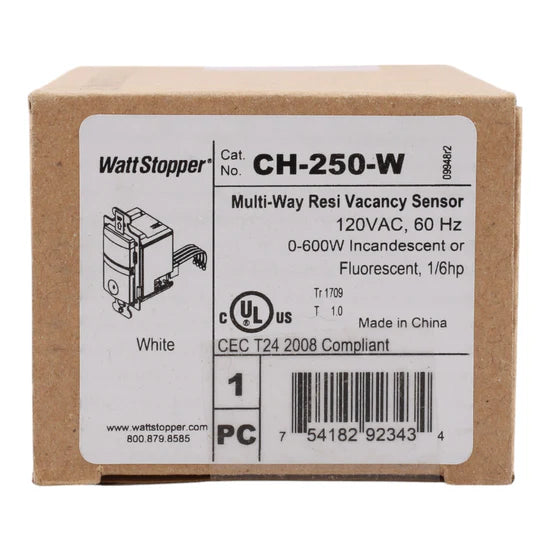

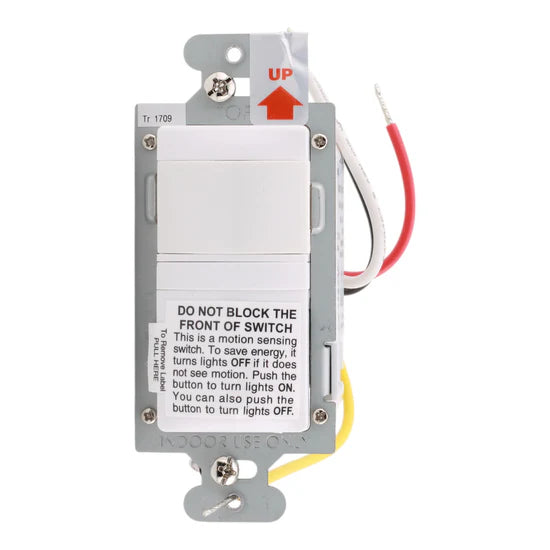

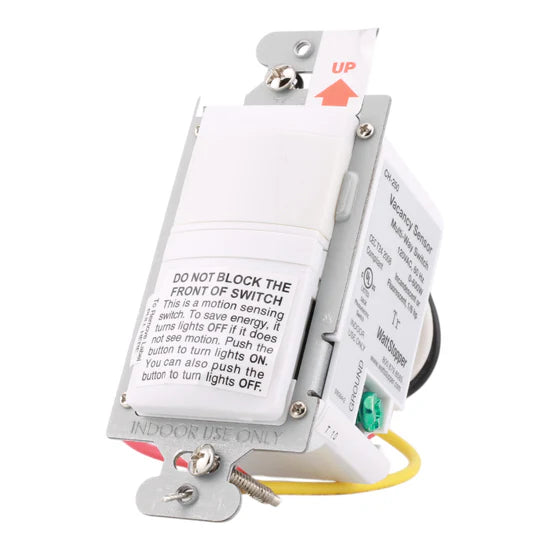

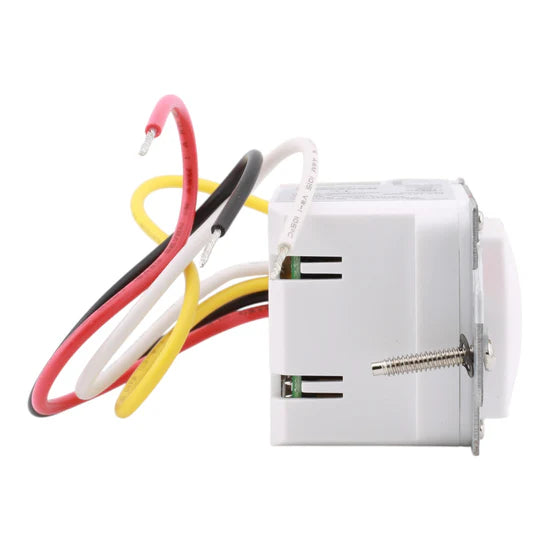

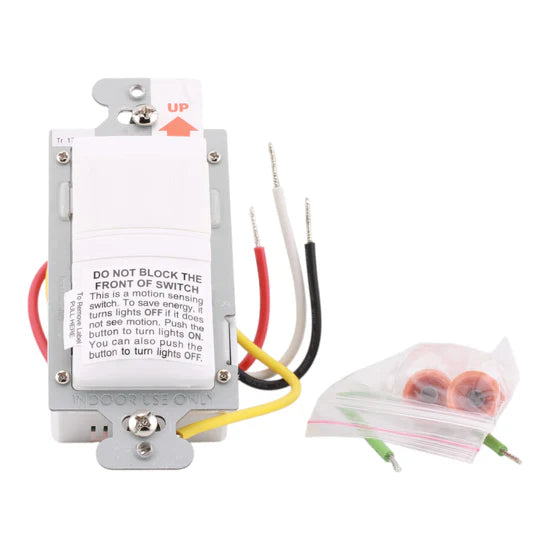

Wattstopper CH-250-W 600W PIR Vacancy Sensor – In-Wall – White

The Wattstopper CH-250-W is a passive infrared (PIR) vacancy sensor designed for manual-on/auto-off lighting control in multi-way applications. With 180° coverage up to 600 sq ft and adjustable time delay, it provides efficient energy management. California Title 24 compliant, this sensor supports safe, reliable, and code-compliant installation in residential and commercial settings.

Voltage and Rating

• Wattage Rating: 600W
• Voltage Rating: 120V AC
• Amperage: 5A
• Operation Mode: Manual-On/Automatic-Off

Key Specifications

• Sensor Type: PIR Vacancy Sensor
• Product Line: CH-250 Series
• Color: White
• Coverage Area: 600 sq ft
• Detection Pattern: 180°
• Sensing Range: 24 × 25 ft
• Mounting Type: In-Wall

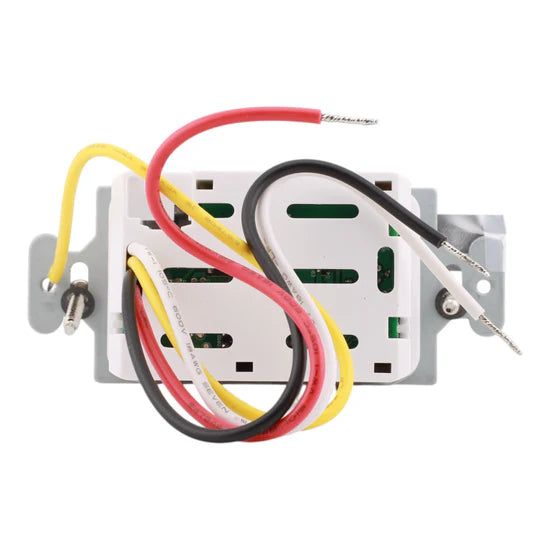

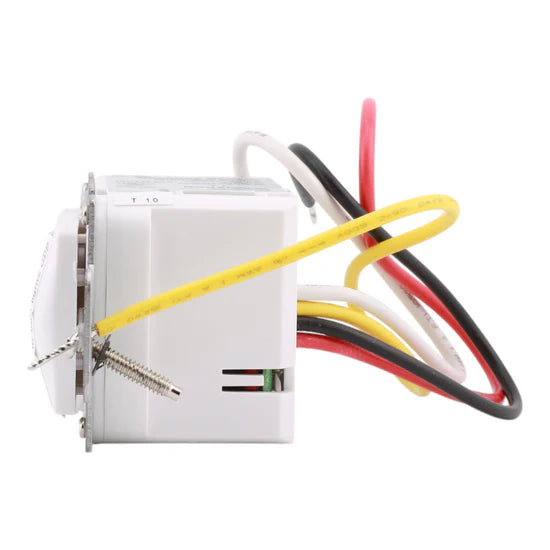

• Connection Type: Flying Leads (4 connections)
• Features: Lighted pushbutton, multi-way capability, adjustable time delay
• Compatibility: Multi-way switching applications
• Mounting Height: 4 ft recommended
• Dimensions (H × W × D): 4.2 × 1.7 × 2.0 in
• Weight: 0.4 lb
• Operating Temperature: 32°–131°F (0°–55°C)
• Operating Humidity: 5–95% RH (Non-Condensing)

Certifications

• UL Listed
• cUL Listed
• California Title 24 Compliant
• 2011 NEC Compliant

Product Data

• • Manufacturer: Legrand
  • Brand: Wattstopper
  • Model Number: CH-250-W
  • UPC: 754182923434
  • Warranty: 5-Year
