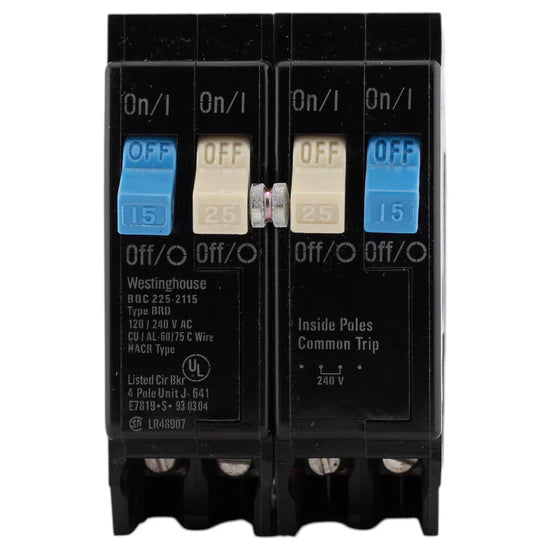

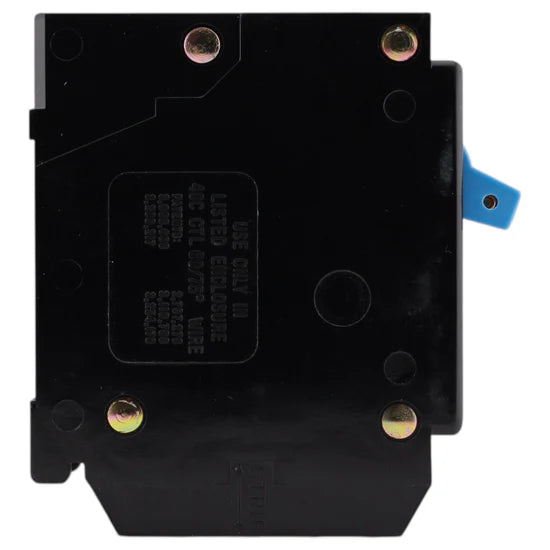

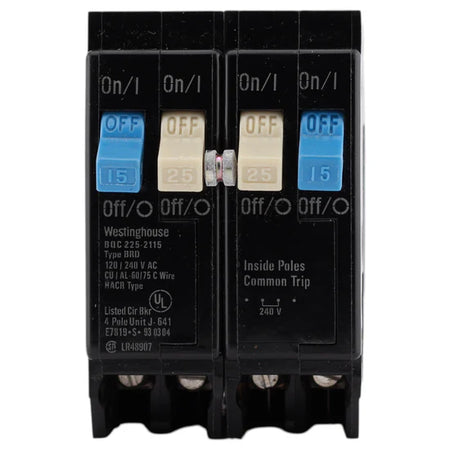

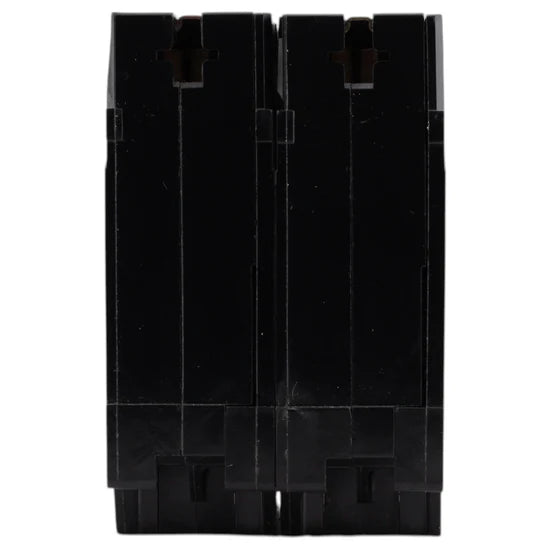

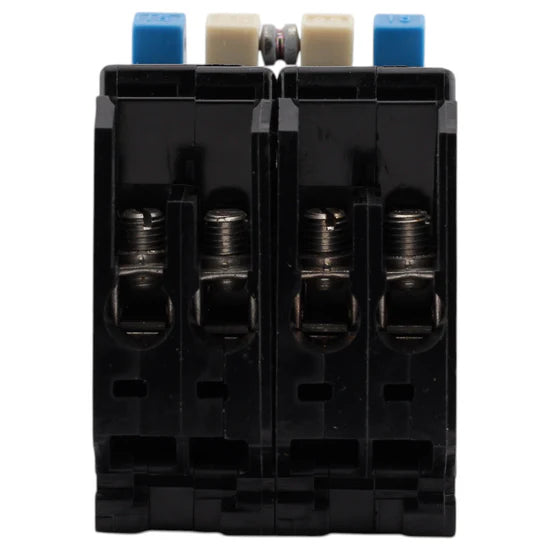

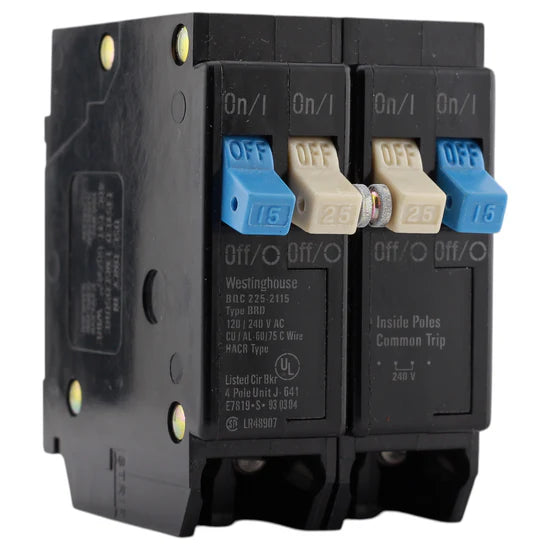

Westinghouse BR BQC2252115 25A/15A 4-Pole Quadplex – CTL Plug-On – 120/240V AC

The Westinghouse BR BQC2252115 25A/15A 4-Pole Quadplex – CTL Plug-On – 120/240V AC provides reliable multi-pole protection for 120/240V AC circuits in Eaton Westinghouse BR loadcenters. Combining two 1-Pole 15A breakers with one 2-Pole 25A common-trip breaker in a compact quadplex design, it saves space while delivering dependable thermal-magnetic protection for residential applications.

Voltage and rating

• Current Rating: (2) 1-Pole 15 Amps (outer poles) / (1) 2-Pole 25 Amps (center poles, common trip)
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Thermal Magnetic Quadplex Circuit Breaker (BQC — Common Trip Center Poles)
• Number of Poles: 4-Pole
• Mounting Type: CTL Plug-On (includes rejection tab)
• Product Range: BR (for Eaton Type BR loadcenters and residential panels)
• Application: Residential branch circuit protection

Technical Specifications

• Wire Size Range: #14–4 AWG Cu/Al
• Operating Mechanism: Thermal-magnetic
• Interrupt Rating: 10 kAIC
• Certifications: UL Listed, HACR Rated

Product Data

• Manufacturer: Eaton (formerly Cutler-Hammer / Westinghouse)
• Brand: Eaton Westinghouse
• Model Number: BQC2252115
• UPC: 786676371766

• Dimensions:

  • Height: 3 in
  • Width: 2 in
  • Depth: 3 in
  • Weight: 0.9 lbs
