Eaton XTCE007B10TD 7 Amp IEC Contactor – 3 Pole – 24 V DC Coil – 1NO – Frame B – XT Series – Non-Reversing

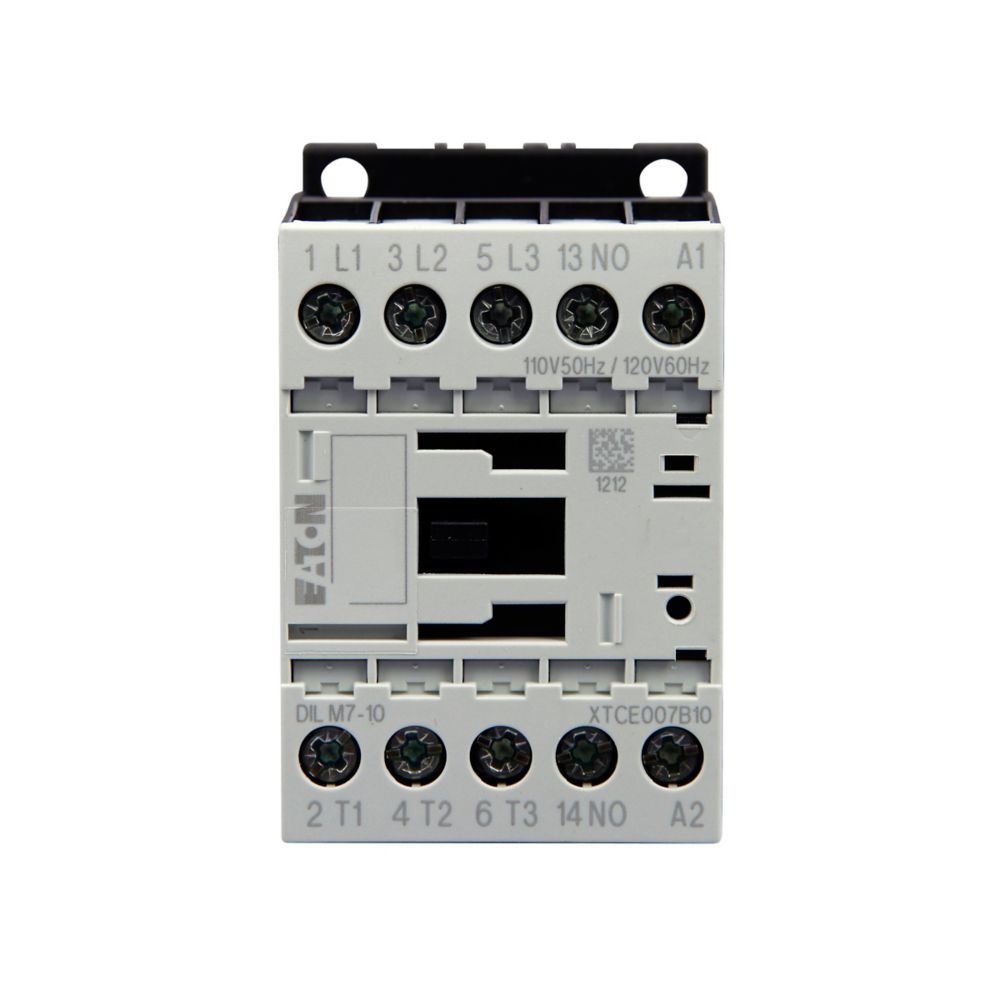

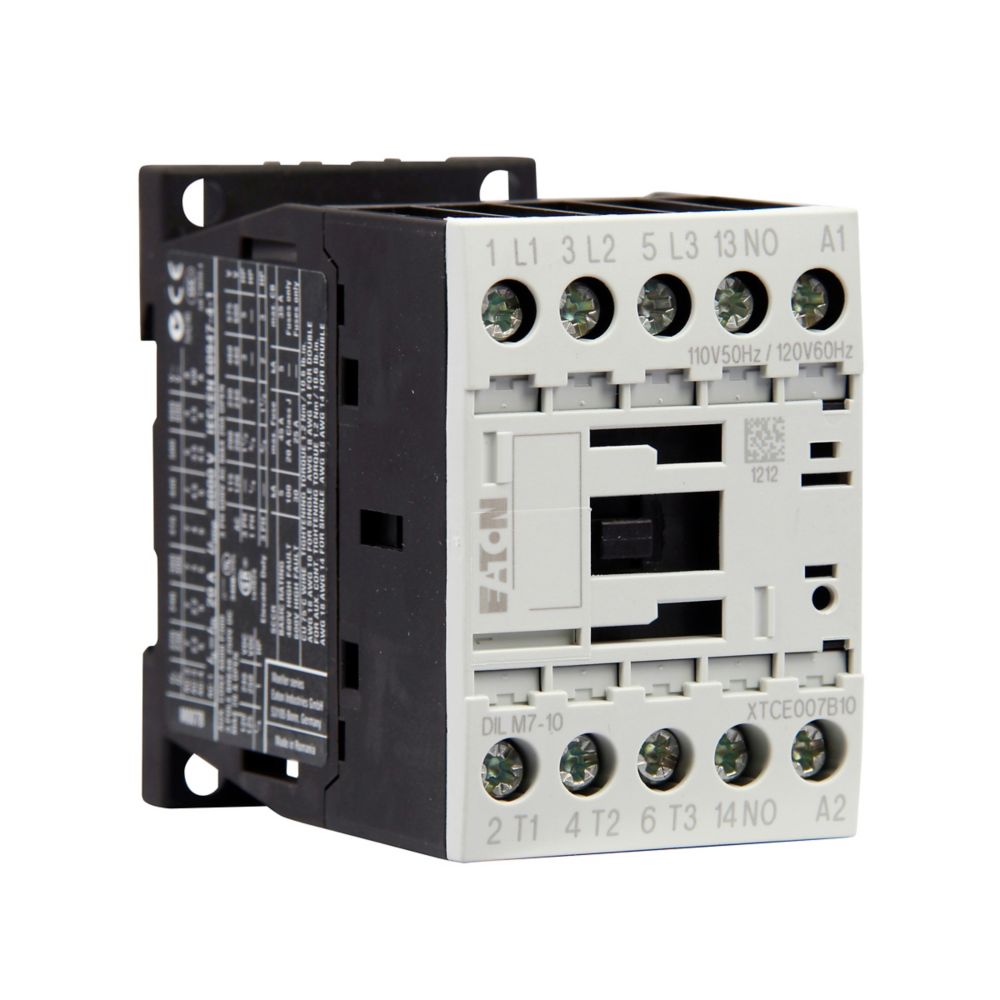

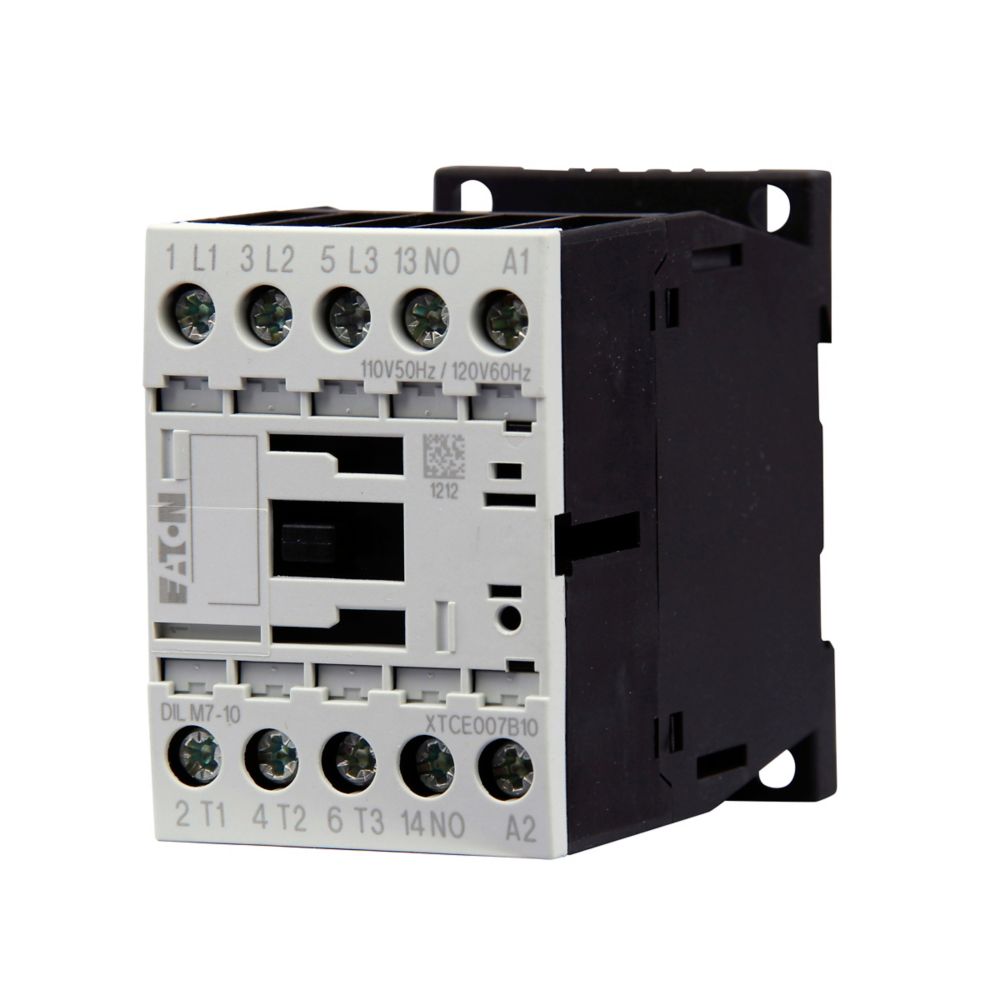

The Eaton XTCE007B10TD is a 7 Amp, 3-pole IEC contactor from the Eaton XT IEC Series. It features a 24 V DC coil, one normally open auxiliary contact, and screw terminals. This full-voltage non-reversing contactor is designed for motor control applications and uses a compact 45 mm Frame B design.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: IEC Contactor
• Series: XT IEC
• Catalog Number / MPN: XTCE007B10TD
• Primary Rating: 7 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 24 V DC
• Auxiliary Contacts: 1 Normally Open (1NO)
• Frame: B
• Width: 45 mm
• Connection / Terminals: Screw Terminals
• Reversing Type: Non-Reversing
• Starter Type: Full-Voltage Non-Reversing
• Motor Horsepower Ratings:
  • 1/3 HP at 115 V, 1 Phase
  • 0.75 HP at 200 V, 3 Phase
  • 1 HP at 230/200 V
  • 1.5 HP at 230 V
  • 2 HP at 460 V
  • 3 HP at 575 V
  • 5 HP at the applicable listed voltage and phase configuration

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: XTCE007B10TD
• Series: XT IEC
• Current Rating: 7 A
• Pole Count: 3 Pole
• Product Type: Full-Voltage Non-Reversing IEC Contactor
• Frame: B
• Auxiliary Contact Configuration: 1NO
• UPC:4015082765651

Compatibility

The Eaton XTCE007B10TD is intended for compatible Eaton XT IEC motor control and full-voltage non-reversing starter applications.
