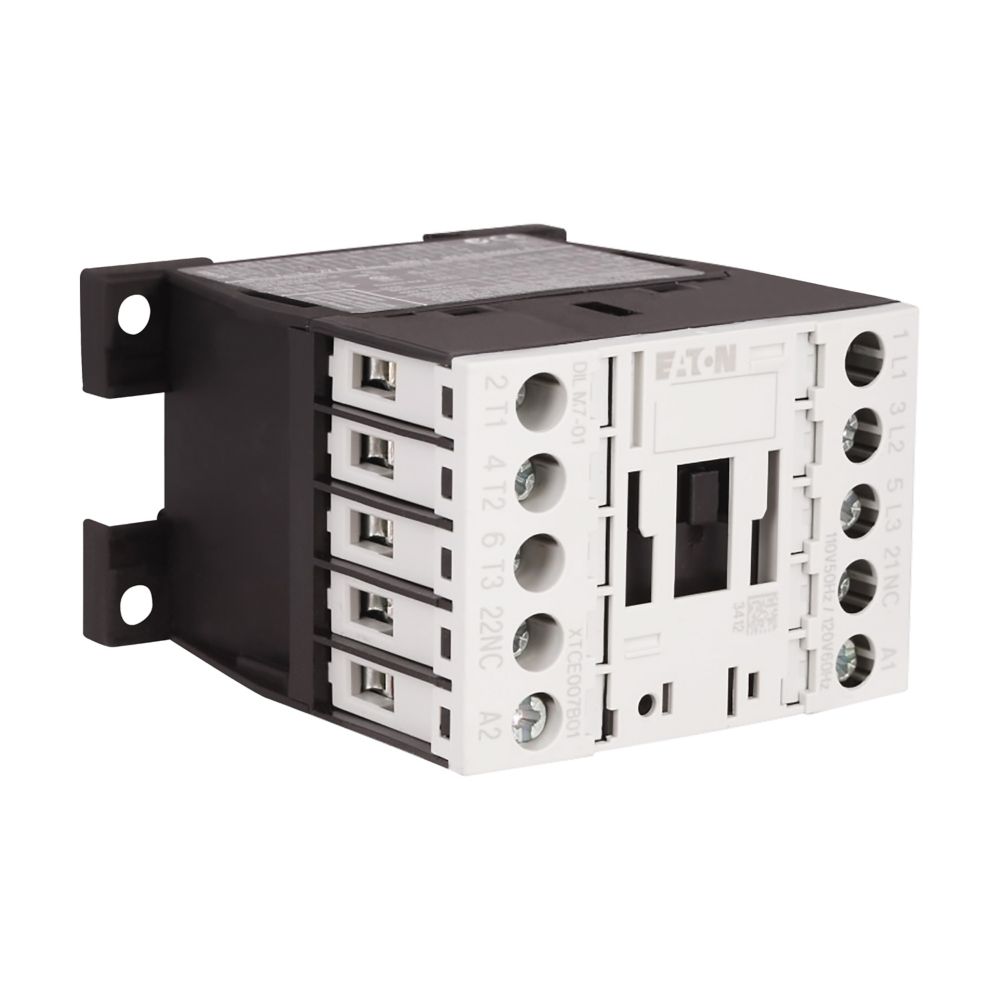

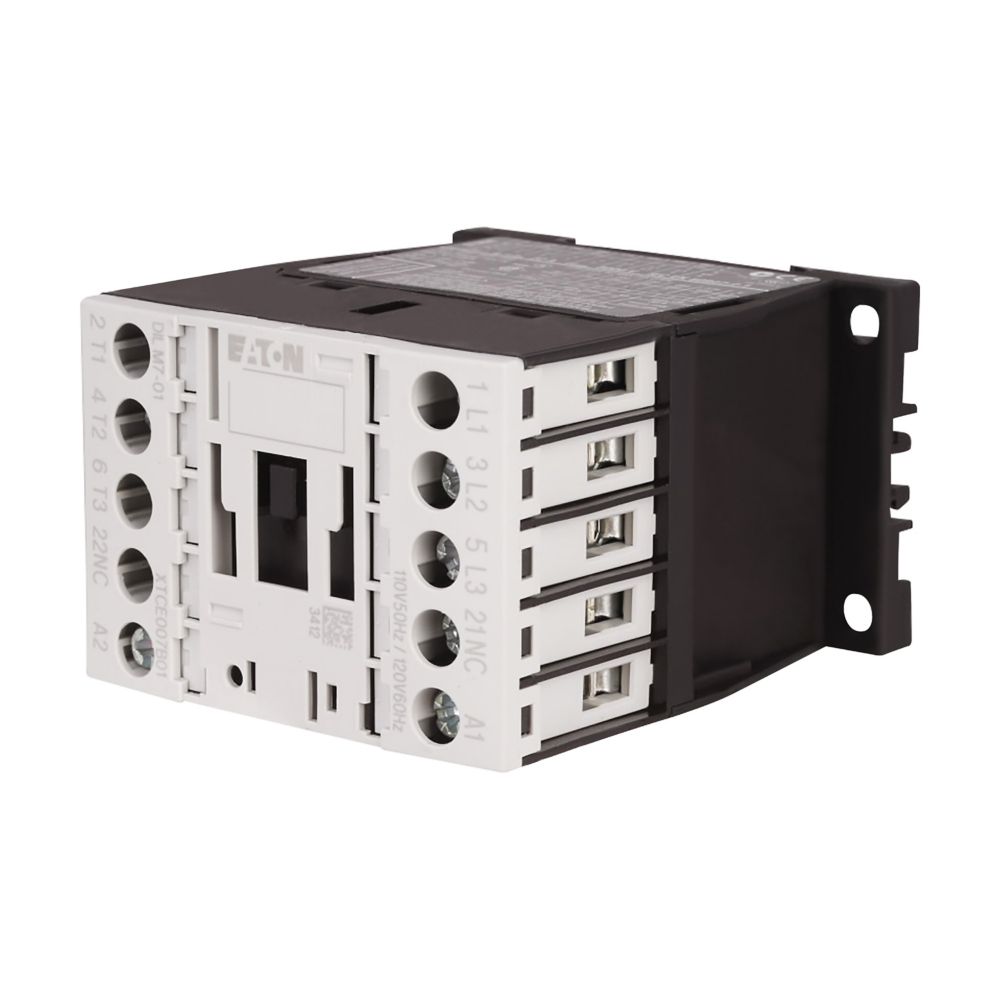

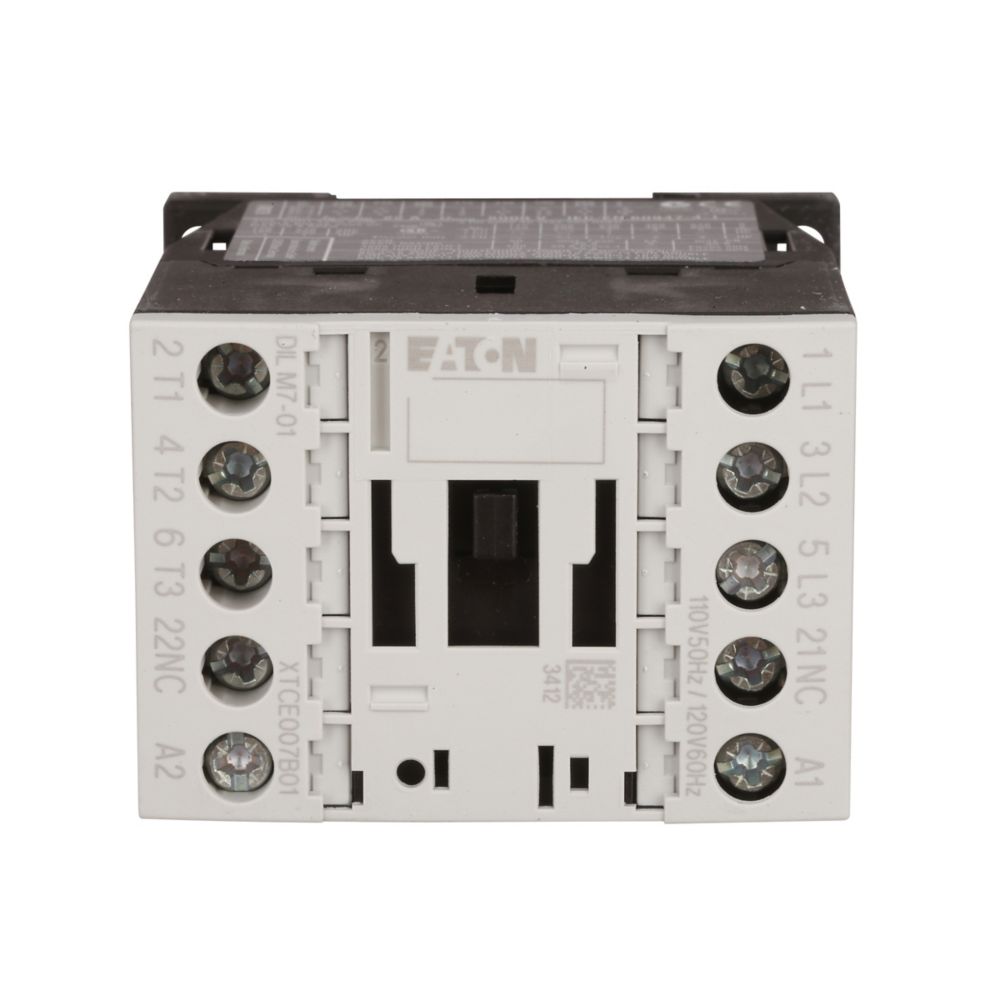

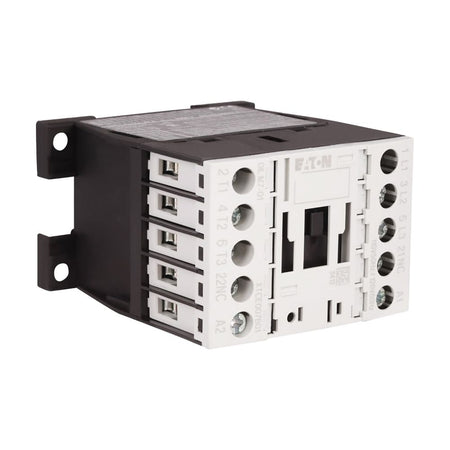

Eaton XTCE015B10A Contactor – 15A – 3-Pole / 3-Phase – 110/120V – 15A – Screw Terminals – XT Series

The Eaton XTCE015B10A is a 15A, three-pole IEC contactor from the Eaton / Cutler-Hammer XT Series. It features a Frame B, 45 mm construction, screw terminals, and a full-voltage non-reversing (FVNR) configuration.

The contactor is specified for 110 VAC at 50 Hz and 120 VAC at 60 Hz and includes 1 normally open (NO) auxiliary contact. It provides motor horsepower ratings for compatible 1- and 3-phase applications across multiple system voltages.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: IEC Contactor
• Product Family: XT
• Series: XT
• Catalog No.: XTCE015B10A
• Current Rating: 15A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 110 VAC @ 50 Hz; 120 VAC @ 60 Hz
• Frequency: 50–60 Hz
• Auxiliary Contact Configuration: 1NO
• Contact Rating: 15A
• Frame Size: B
• Width: 45 mm
• Terminal Type: Screw Terminals
• Starter Configuration: Full-Voltage Non-Reversing (FVNR)
• Reversing: Non-Reversing
• Motor Horsepower Ratings: 1 HP @ 115V 1/3-Phase; 2 HP @ 200V; 3/5 HP @ 230/200V; 5 HP @ 230V; 10 HP @ 460V; 10 HP @ 575V
• Application: Motor Control and Electrical Load Switching
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): XTCE015B10A
• Catalog Number: XTCE015B10A
• Model: XTCE015B10A
• Product Family: Eaton XT IEC Contactors
• Series: XT
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: IEC Contactor
• Configuration: 3-Pole, 15A
• Frame: B
• Auxiliary Contact: 1NO

Compatibility:

Designed for compatible Eaton / Cutler-Hammer XT Series motor-control and electrical load-switching applications. The XTCE015B10A is a 15A, 3-pole IEC contactor with a 1NO auxiliary contact, screw terminals, and a full-voltage non-reversing configuration.

Always verify the specific motor application, system voltage, frequency, required horsepower rating, auxiliary contact requirements, coil/control requirements, mounting arrangement, terminal configuration, and installation specifications before installation.

Certifications:

• XT Series
• 15A Rated
• 3-Pole
• 110 VAC @ 50 Hz
• 120 VAC @ 60 Hz
• 1NO Auxiliary Contact
• Frame B
• 45 mm
• Screw Terminals
• Non-Reversing
• Full-Voltage Non-Reversing (FVNR)
• Eaton / Cutler-Hammer IEC Contactor
