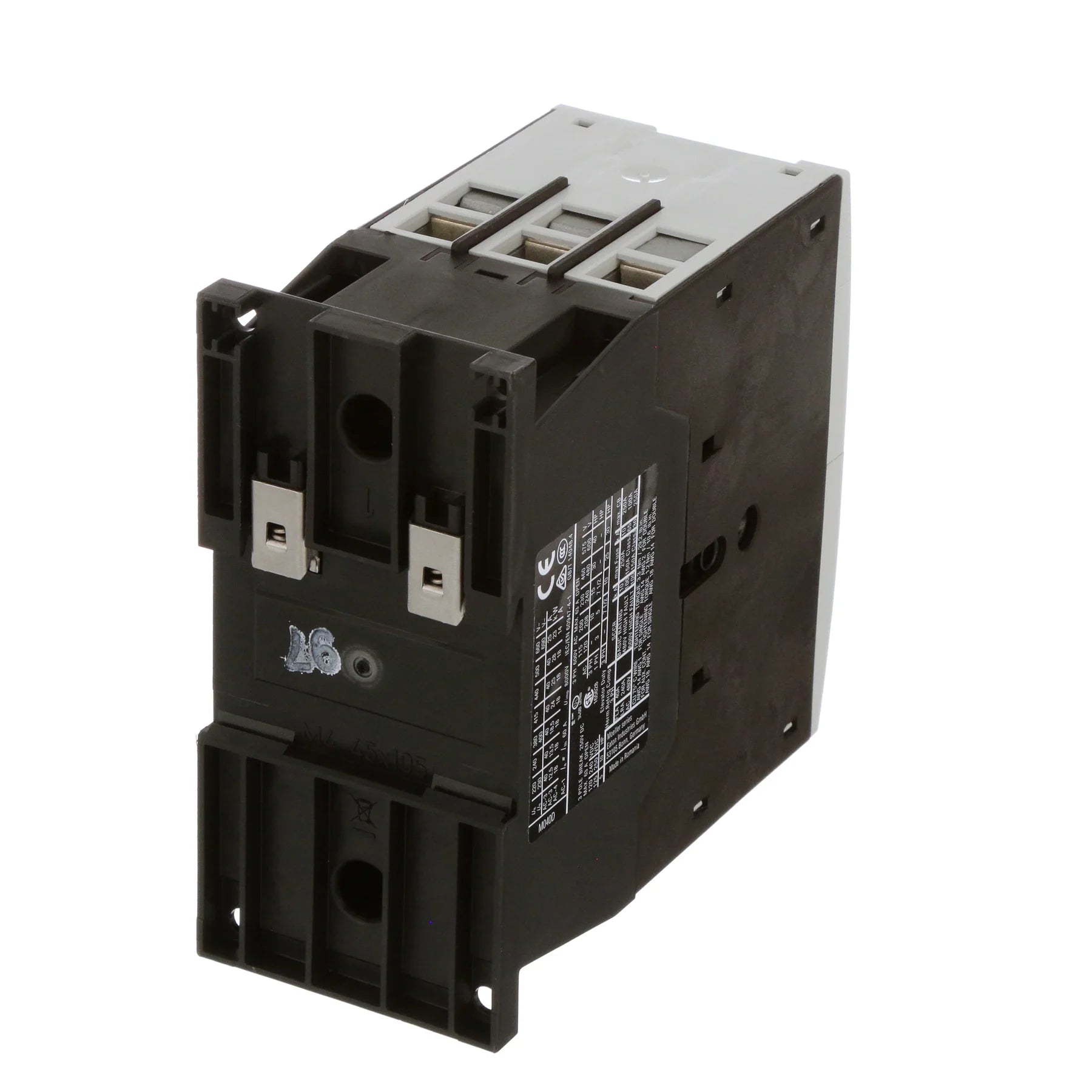

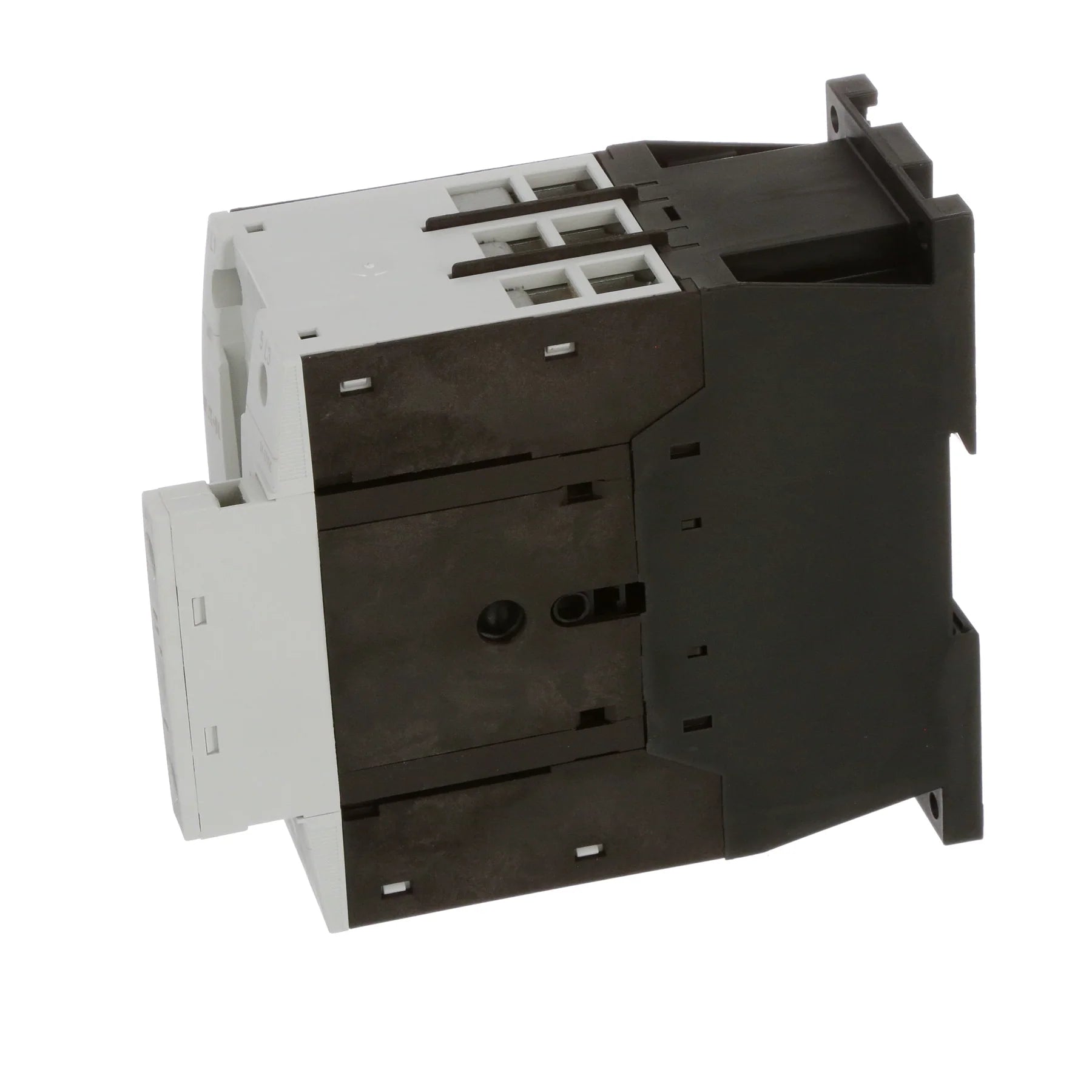

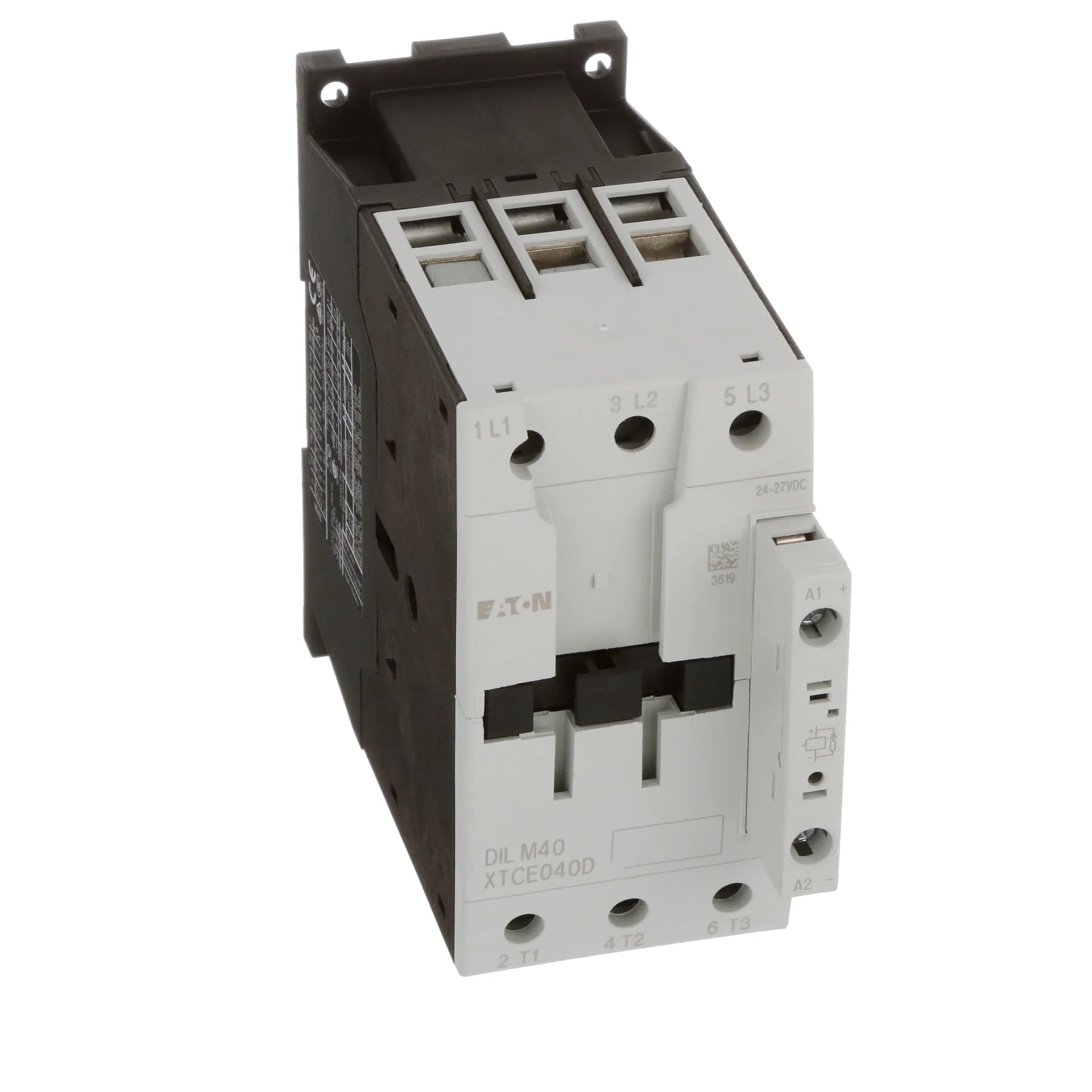

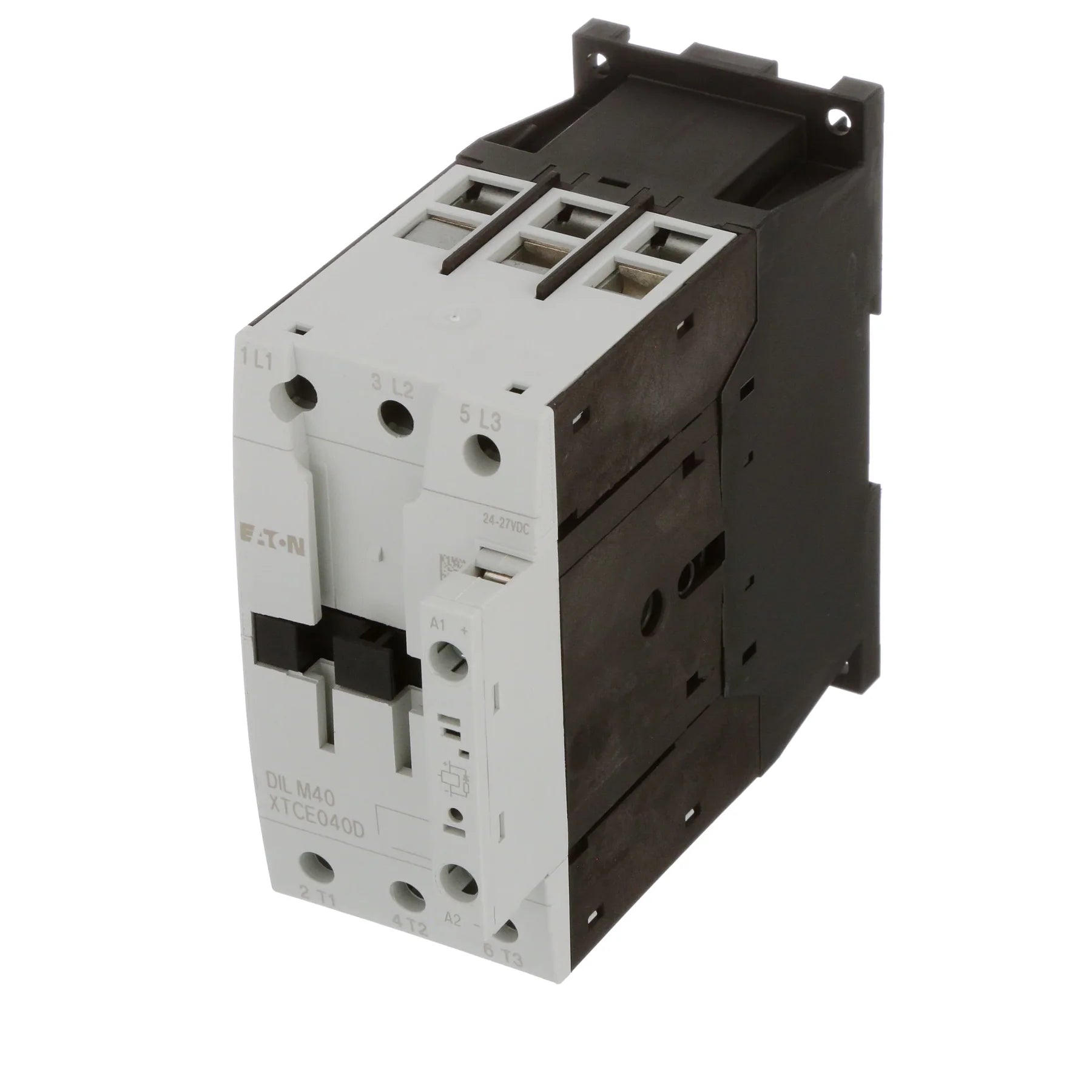

Eaton XTCE040D00TD Magnetic Contactor – 40A – 3-Pole – 24–27V DC Coil– XT Series

The Eaton XTCE040D00TD is a 40A, 3-pole IEC magnetic contactor from the Eaton XT Series. It is designed for compatible motor-control and electrical load-switching applications and features a 24–27V DC coil.

The contactor has a three-pole, non-reversing configuration, screw terminals, and a Frame D / 55 mm construction. It is specified as a full-voltage non-reversing (FVNR) contactor and supports compatible motor applications across the listed horsepower ratings and supply voltages.

Specifications:

• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Product Family: XT IEC Contactors
• Series: XT
• Catalog No.: XTCE040D00TD
• Current Rating: 40A
• Number of Poles: 3-Pole
• Coil Voltage: 24–27V DC
• Coil Type: DC
• Auxiliary Contacts: 0 NO / 0 NC
• Frame: Frame D
• Frame Width: 55 mm
• Configuration: Non-Reversing
• Starter Type: Full-Voltage Non-Reversing (FVNR)
• Connection Type: Screw Terminals
• Phase Configuration: 1-Phase / 3-Phase applications as specified
• Horsepower Ratings: 3 HP @ 115V; 5 HP @ 200V; 7.5/10 HP @ 230/200V; 15 HP @ 230V; 30 HP @ 460V; 40 HP @ 575V
• Application: Motor Control and Electrical Load Switching
• Mounting Type: Not specified
• Key Capacity: Not specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): XTCE040D00TD
• Catalog Number: XTCE040D00TD
• Model: XTCE040D00TD
• Product Family: Eaton XT IEC Contactors
• Series: XT
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Contactor Configuration: 3-Pole, 40A
• Frame: D
• Coil Rating: 24–27V DC
• Auxiliary Contact Configuration: 0 NO / 0 NC
• UPC:015082777801

Compatibility:

Designed for use with compatible Eaton XT Series IEC contactor and motor-control applications. The XTCE040D00TD provides 40A, 3-pole, non-reversing switching with a 24–27V DC coil, screw-terminal connections, and a Frame D / 55 mm construction.

The contactor supports the listed motor horsepower ratings across compatible 115V, 200V, 230V, 460V, and 575V applications and 1-phase/3-phase configurations as specified. Always verify the specific motor load, system voltage, phase configuration, coil voltage, utilization category, control circuit requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• Eaton XT IEC Series
• 40A Rated
• 3-Pole
• 24–27V DC Coil
• 0 NO / 0 NC Auxiliary Contacts
• Non-Reversing
• Full-Voltage Non-Reversing (FVNR)
• Screw Terminals
• Frame D
• 55 mm Frame Width
