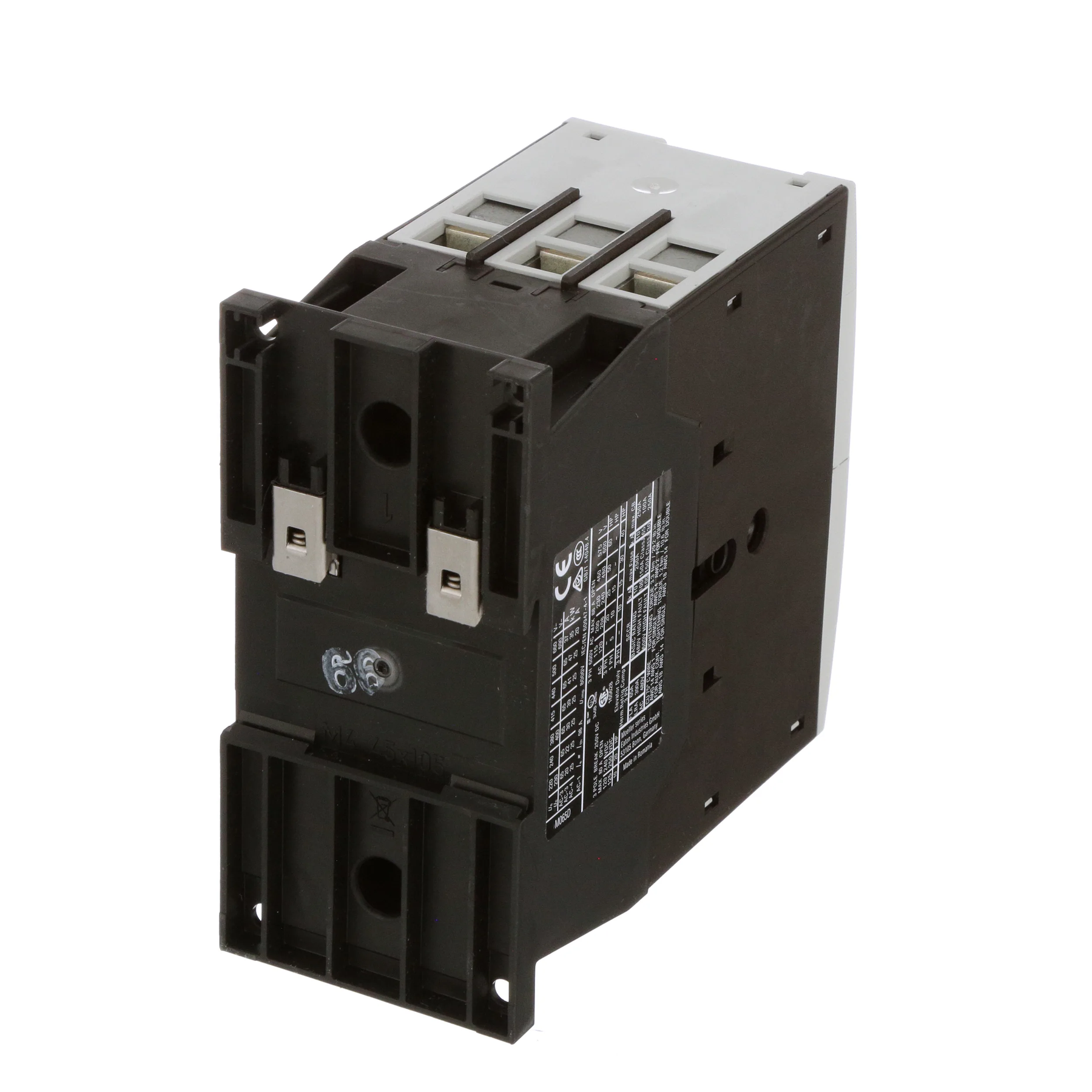

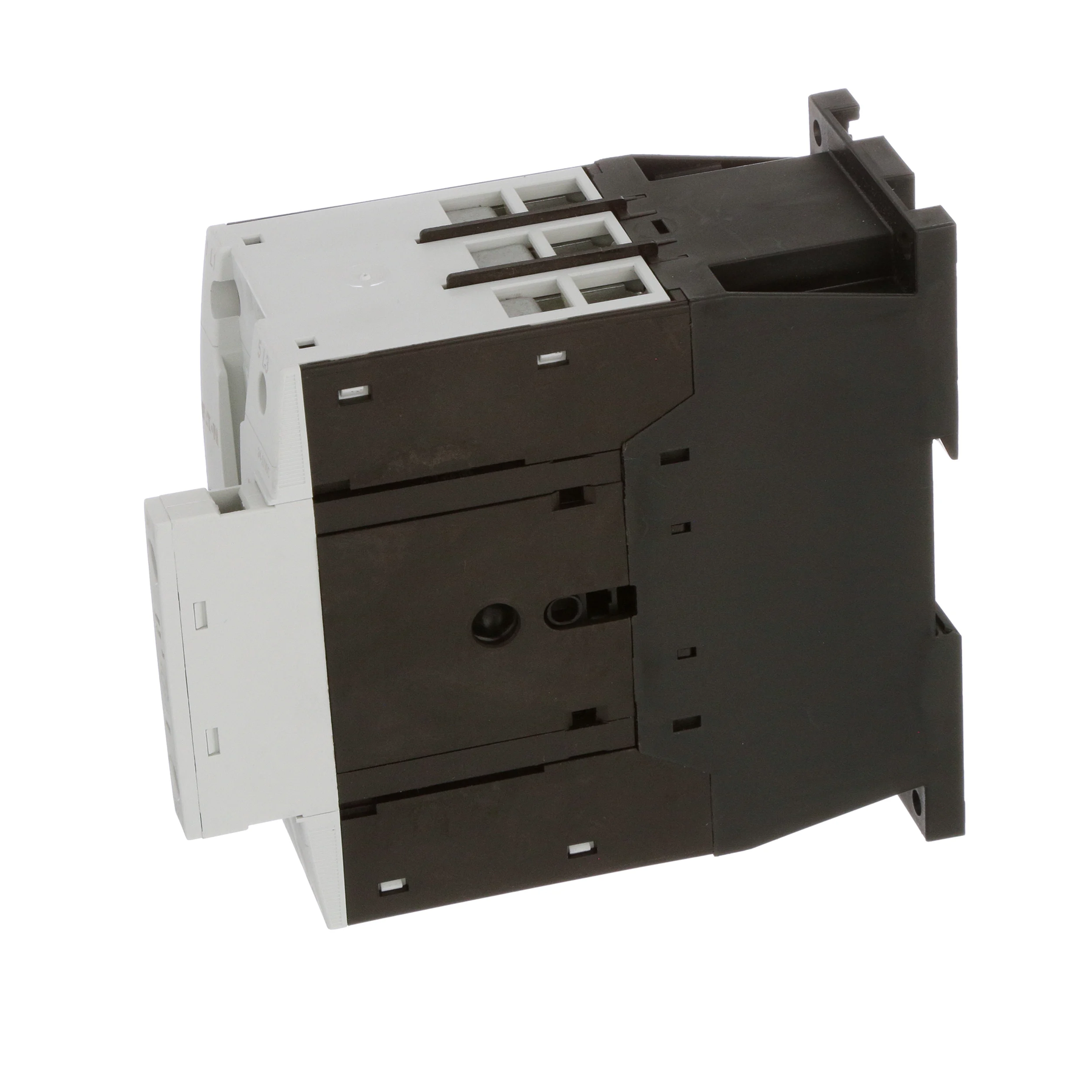

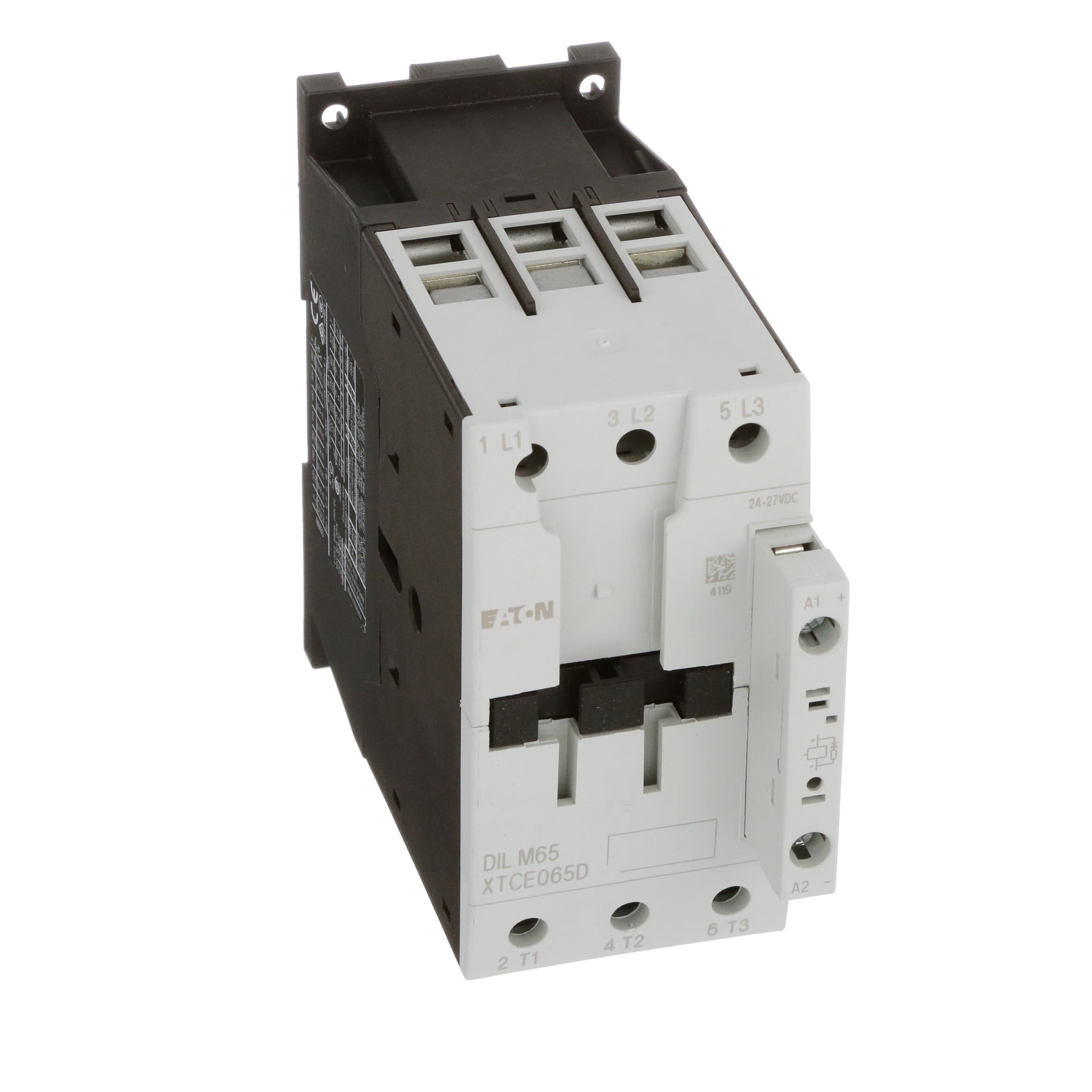

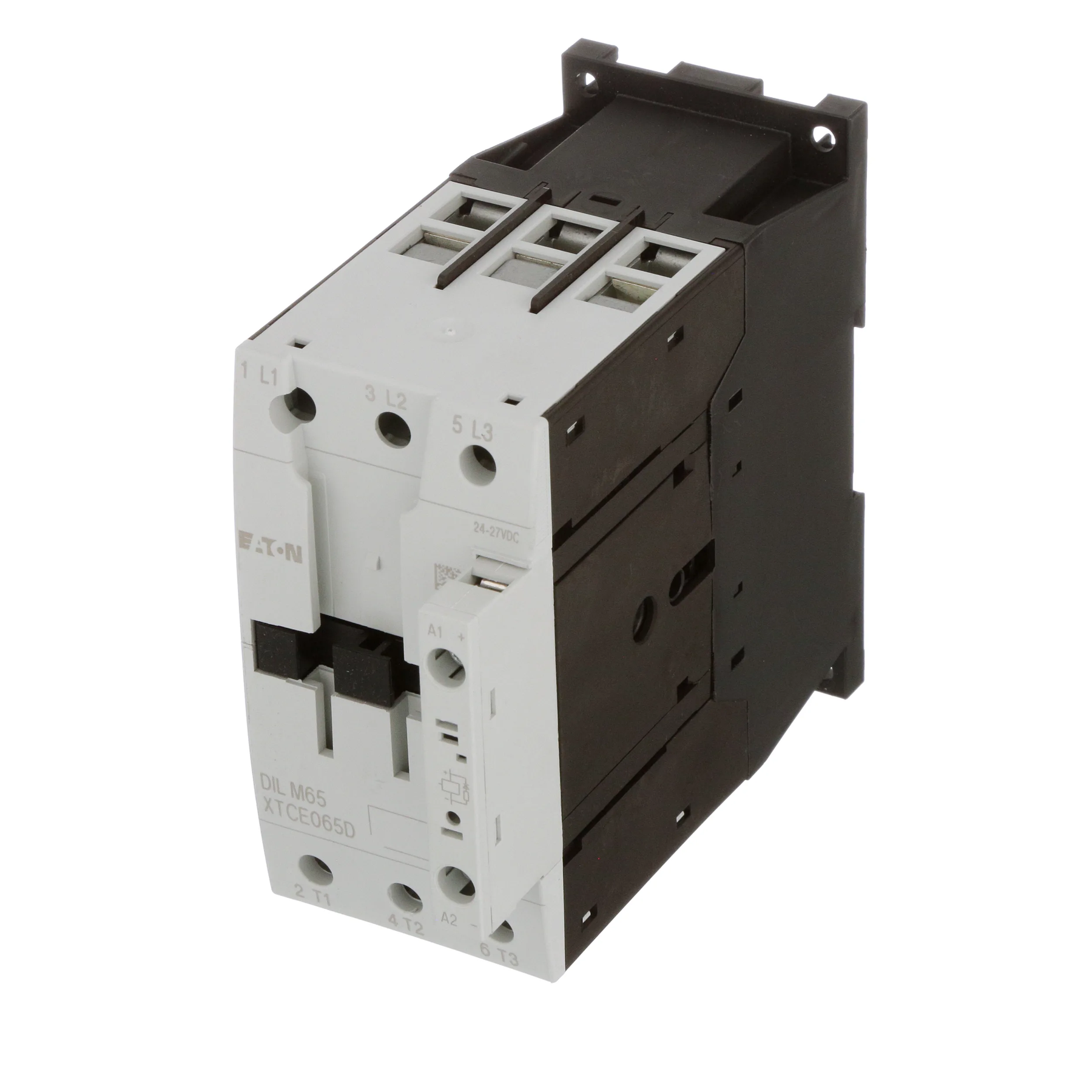

Eaton XTCE065D00TD Magnetic Contactor – 65A – 3-Pole / Non-Reversing –65A Capacity – Screw Terminals – XT Series

The Eaton XTCE065D00TD is a 65A, three-pole, non-reversing IEC magnetic contactor from the Eaton XT Series. It features a 24–27 VDC control coil, 0 normally open (NO) and 0 normally closed (NC) auxiliary contacts, and screw terminals.

The contactor is a Frame D device with a 55 mm frame size and is designed for full-voltage non-reversing (FVNR) motor-control applications. Its listed horsepower ratings include 5, 10, 15/20, 25, 50, and 60 HP for applicable single- and three-phase applications at 115V, 200V, 230V, 460V, and 575V.

Specifications:

• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Product Family: XT IEC Contactors
• Series: XT
• Catalog No.: XTCE065D00TD
• Current Rating: 65A
• Number of Poles: 3-Pole
• Phase: Not specified
• Control Coil Voltage: 24–27 VDC
• Auxiliary Contacts: 0NO-0NC
• Frame: Frame D
• Frame Size: 55 mm
• Control / Starter Type: Full-Voltage Non-Reversing (FVNR)
• Reversing: Non-Reversing
• Terminal Type: Screw Terminals
• Horsepower Ratings: 5, 10, 15/20, 25, 50, and 60 HP
• Applicable System Voltages: 115V, 200V, 230V, 460V, and 575V
• Application: Motor Control and Electrical Load Switching
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): XTCE065D00TD
• Catalog Number: XTCE065D00TD
• Model: XTCE065D00TD
• Product Family: Eaton XT IEC Contactors
• Series: XT
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Magnetic Contactor
• Configuration: 3-Pole, Non-Reversing
• Current Rating: 65A
• Frame: D
• Frame Size: 55 mm
• UPC:4015082779085

Compatibility:

Designed for use with compatible Eaton XT Series IEC motor-control and electrical load-switching applications. The XTCE065D00TD is a 65A, 3-pole, non-reversing contactor with a 24–27 VDC control coil, screw terminals, and FVNR configuration.

The listed horsepower ratings apply to specified single- and three-phase applications at the listed system voltages. Always verify the motor load, phase configuration, operating voltage, control-circuit voltage, horsepower requirement, auxiliary-contact requirements, terminal arrangement, and installation specifications before installation.

Certifications:

• Eaton XT Series
• 65A Rated
• 3-Pole
• 24–27 VDC Control Coil
• 0NO-0NC Auxiliary Contacts
• Frame D
• 55 mm Frame Size
• Full-Voltage Non-Reversing (FVNR)
• Non-Reversing
• Screw Terminals
