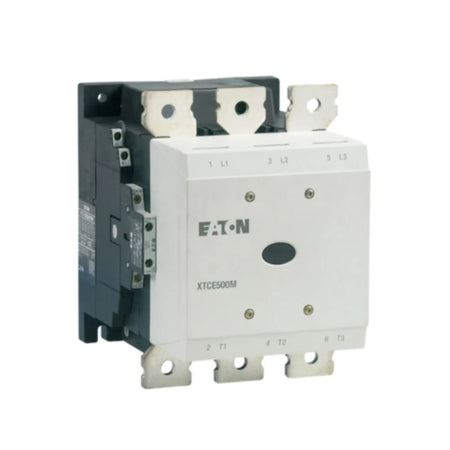

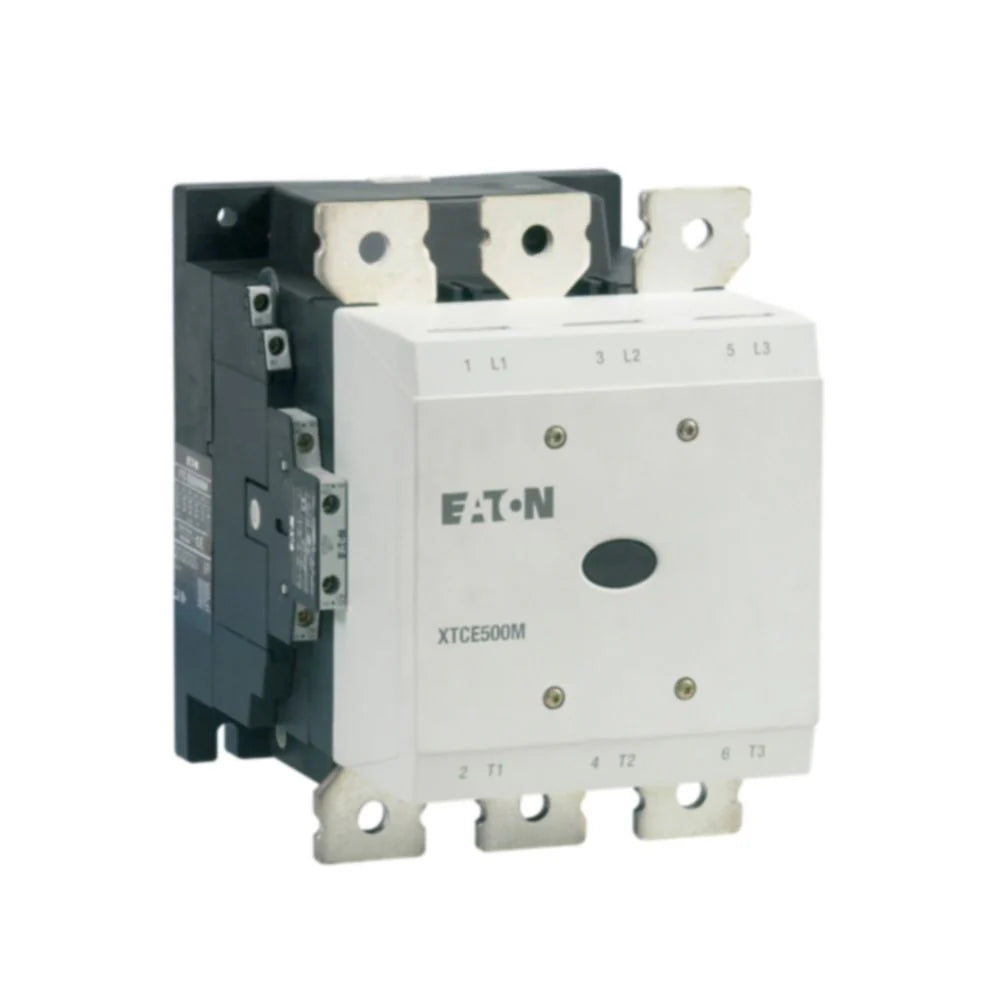

Eaton XTCE500M22A Contactor – 500A – 3-Pole / 3-Phase – 110/120V AC Coil – 2NO-2NC – Screw Terminals – XT IEC Series

The Eaton XTCE500M22A is a 500A, 3-pole, non-reversing IEC contactor from the Eaton XT Series. It is designed for compatible three-phase motor-control applications and features a full-voltage non-reversing (FVNR) configuration.

The contactor has a 110V AC coil at 50Hz and 120V AC coil at 60Hz, with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts. It uses screw terminals and is identified as a Frame M, 160 mm contactor.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: IEC Contactor
• Product Family: XT
• Series: XT IEC
• Catalog No.: XTCE500M22A
• Current Rating: 500A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Coil Voltage: 110V AC @ 50Hz / 120V AC @ 60Hz
• Coil Frequency: 50/60Hz
• Auxiliary Contacts: 2NO-2NC
• Contactor Type: Non-Reversing
• Starter Configuration: Full-Voltage Non-Reversing (FVNR)
• Frame: M
• Frame Size: 160 mm
• Connection Type: Screw Terminals
• Horsepower Ratings: 150 HP @ 200V; 200 HP @ 230V; 400 HP @ 460V; 500 HP @ 575V, 3-Phase
• Application: Three-Phase Motor Control
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): XTCE500M22A
• Catalog Number: XTCE500M22A
• Model: XTCE500M22A
• Product Family: Eaton XT IEC Contactors
• Series: XT
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: IEC Contactor
• Configuration: 3-Pole, 500A
• Starter Type: Full-Voltage Non-Reversing
• Frame: M
• Frame Size: 160 mm
• UPC:4015082082130

Compatibility:

Designed for compatible Eaton XT Series IEC motor-control applications requiring a 500A, 3-pole, full-voltage non-reversing contactor. The XTCE500M22A provides 2NO-2NC auxiliary contacts, screw-terminal connections, and a 110/120V AC control coil.

Always verify the motor horsepower, system voltage, motor full-load current, coil voltage and frequency, auxiliary contact requirements, control circuit configuration, and installation requirements before installation.

Certifications:

• Eaton XT IEC Series
• 500A Rated
• 3-Pole / 3-Phase
• 110V AC @ 50Hz / 120V AC @ 60Hz Coil
• 2NO-2NC Auxiliary Contacts
• Non-Reversing
• Full-Voltage Non-Reversing (FVNR)
• Frame M
• 160 mm Frame Size
• Screw Terminals
• 150–500 HP Ratings for Listed 3-Phase Voltages
