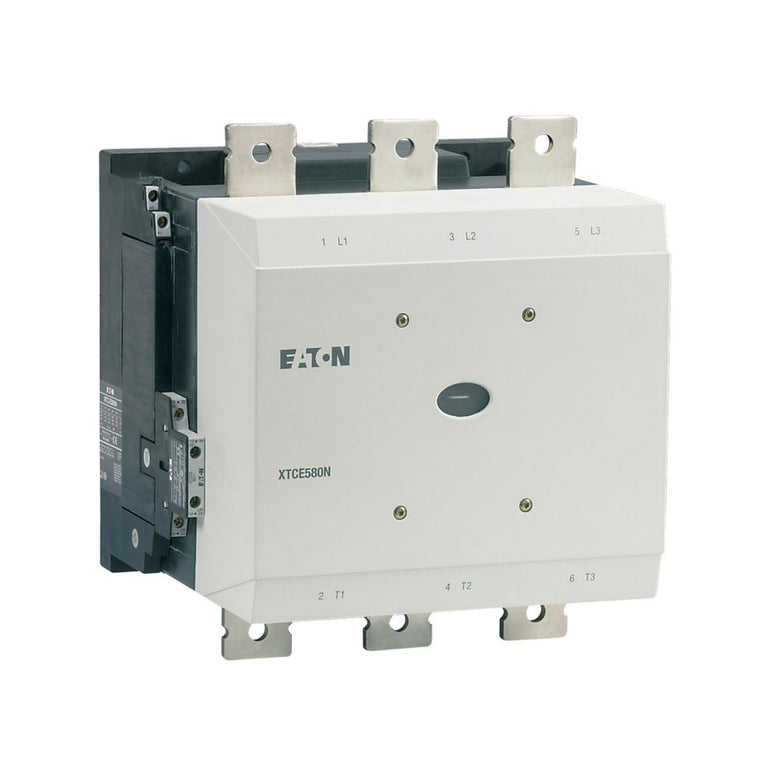

Eaton XTCE580N22A 580 Amp IEC Contactor – 3 Pole – 110 V AC / 250 V AC Coil – Non-Reversing – XT Series

The Eaton XTCE580N22A is a 580 Amp, 3-pole IEC contactor from Eaton’s XT Series. Designed for industrial motor control and power switching applications, it features a non-reversing, full-voltage non-reversing (FVNR) configuration, a Frame N design, and screw terminals. The contactor includes two normally open and two normally closed auxiliary contacts.

Specifications

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Product Type: IEC Contactor
• Series: XT
• Frame: N Frame
• Catalog Number / MPN: XTCE580N22A
• Primary Current Rating: 580 A
• Additional Current Rating: 630 A (as listed in the supplied information)
• Poles / Configuration: 3 Pole
• Coil Voltage: 110 V AC at 40 Hz / 250 V AC at 60 Hz
• Frequency: 40–60 Hz
• Auxiliary Contacts: 2 NO + 2 NC
• Motor Control Configuration: Non-Reversing
• Starter Configuration: FVNR – Full-Voltage Non-Reversing
• Terminals: Screw Terminals
• Frame Size: 250 mm
• Motor Rating at 200 V, 3 Phase: 200 HP
• Motor Rating at 230 V, 3 Phase: 200 HP
• Motor Rating at 460 V, 3 Phase: 400 HP
• Motor Rating at 575 V, 3 Phase: 600 HP

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Catalog Number: XTCE580N22A
• Series: XT
• Frame: N Frame
• Current Rating: 580 A
• Pole Count: 3 Pole
• Product Type: IEC Contactor
• Auxiliary Contacts: 2 NO + 2 NC
• Configuration: Non-Reversing, FVNR
• Terminal Type: Screw Terminals
• UPC:015082082165

Compatibility

The Eaton XTCE580N22A is intended for compatible Eaton XT Series motor control assemblies and three-phase industrial motor switching applications.
