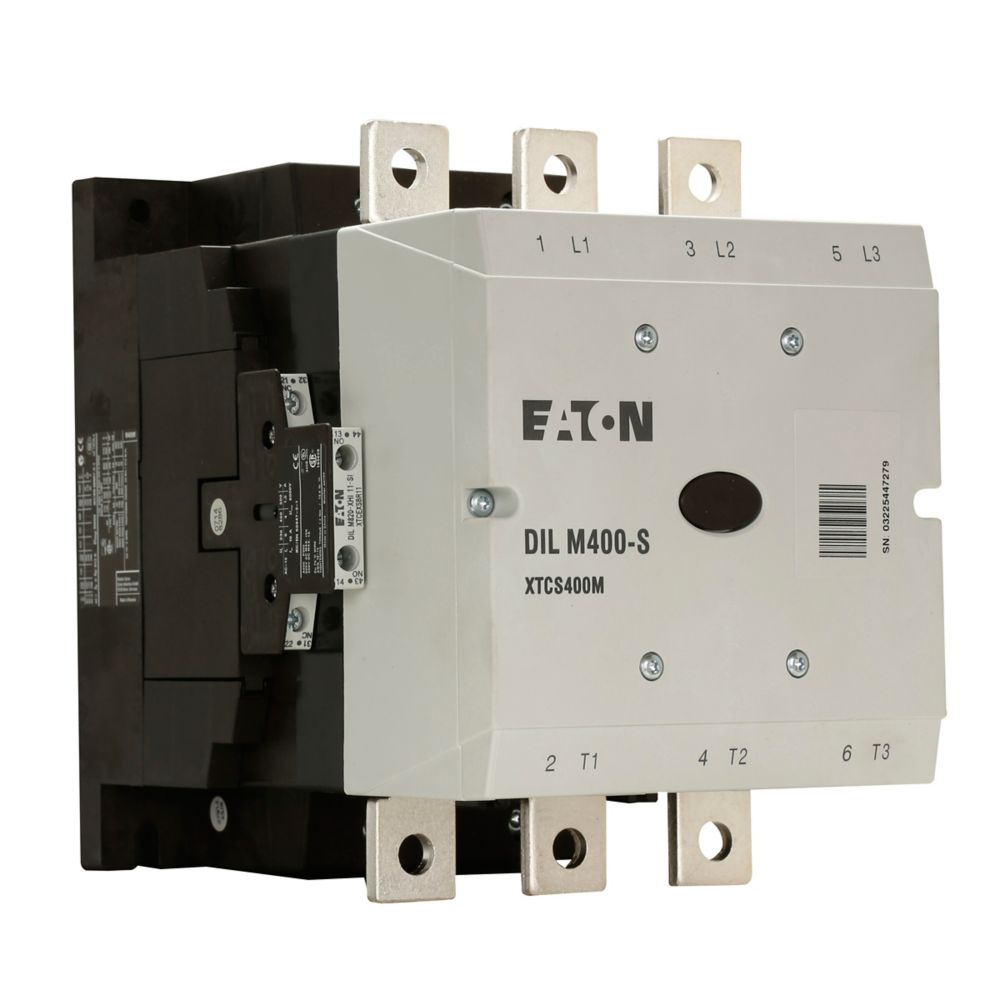

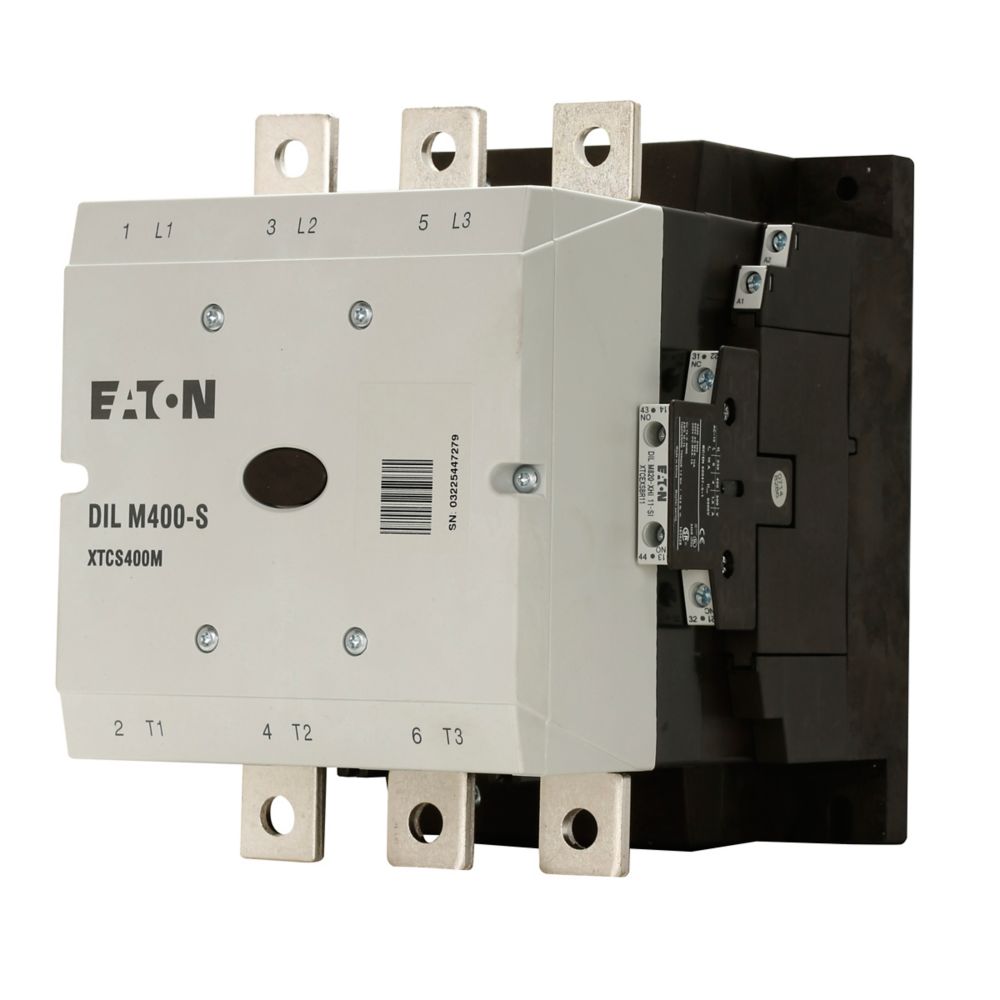

Eaton XTCS500M22A 500 Amp IEC Contactor – 3 Pole – 110 V AC Coil – Frame M – XT Series – Non-Reversing

The Eaton XTCS500M22A is a 500 Amp, three-pole IEC contactor from the Eaton XT Series. It features a 110 V AC coil at 50 Hz and a 120 V AC coil at 60 Hz, with two normally open and two normally closed auxiliary contacts. The contactor has a Frame M construction, screw terminals, and a non-reversing configuration for three-phase motor control applications.

Specifications

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Product Type: IEC Contactor
• Series: XT Series
• Catalog Number / MPN: XTCS500M22A
• Primary Rating: 500 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 110 V AC at 50 Hz / 120 V AC at 60 Hz
• Auxiliary Contacts: 2 NO – 2 NC
• Frame Size: Frame M
• Frame Width: 160 mm
• Frequency: 50–60 Hz
• Connection / Terminals: Screw Terminals
• Reversing Configuration: Non-Reversing
• Starter Type: FVNR – Full Voltage Non-Reversing
• Motor Application: Three-Phase Motors
• Horsepower Ratings: 150 HP, 200 HP, 400 HP, and 500 HP at the specified 200 V, 230 V, 460 V, and 575 V systems, respectively

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Catalog Number: XTCS500M22A
• Series: XT
• Current Rating: 500 A
• Pole Count: 3 Pole
• Product Type: IEC Contactor
• Auxiliary Contact Configuration: 2 NO – 2 NC
• Frame Size: Frame M
• Terminal Type: Screw Terminals
• Configuration: Non-Reversing
• EAN: 4015082741983

Compatibility

The Eaton XTCS500M22A is intended for compatible Eaton XT Series motor control applications requiring a three-pole, non-reversing IEC contactor.
